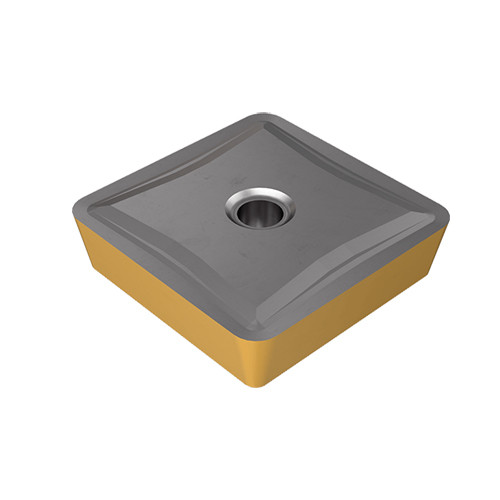

SPMR 090308 IC8250
Square 11° positive flank inserts with a positive chipformerand low cutting forces for semi-finishing and finishing applications.
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Positive Inserts |
| Application | | Ext. 90° Square 45° Approach | Ext. 90°Square 45°Face&Turn Ap | Int. Square 75° Approach | | Min D.O.C. | 1.5 mm |
| Insert Style | SPMR | Depth of Cut Maximum (APMX) | 6 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.16 mm/rev |
| Insert Size | 322 | Max. Turning Feed (ft(max)) | 0.35 mm/rev |

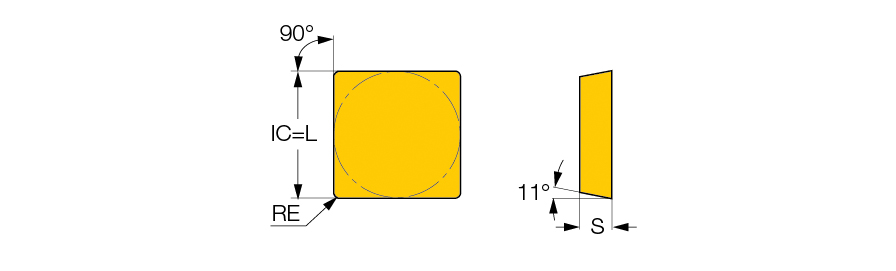

| Cutting Edge Length (L) | 9.52 mm | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 3.18 mm | Chip Breaker Type | R |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
| Grade | IC8250 |
Product Features
| Family Description | Square 11° positive flank inserts with a positive chipformerand low cutting forces for semi-finishing and finishing applications. | FamilyName | SPMR |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0046
Name
Turning Indexable Inserts
FamilyName
SPMR
BrandName
Iscar
