| Applicable Material | | Steel | Stainless Steel | | Fixing Hole Diameter (D1) | 7.94 mm |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Int. Square 75° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | SNMM | Min D.O.C. | 2.5 mm |
| Corner Radius (RE) | 1.6 mm | Depth of Cut Maximum (APMX) | 8 mm |
| Insert Size | 190616 | Min. Turning Feed (ft(min)) | 0.35 mm/rev |
| Cutting Edge Length (L) | 19.06 mm | Max. Turning Feed (ft(max)) | 1 mm/rev |
| Insert Thickness (S) | 6.35 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 19.05 mm | Chip Breaker Type | NR |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC8250 | Unit | M |
Product Features

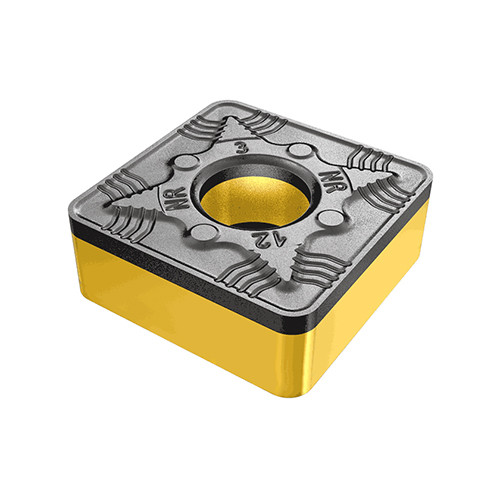

| Family Description | Single-sided, square inserts with a strong cutting edge, positive chipformer, free chip flow for semi-roughing and roughing applications. | FamilyName | SNMM-NR |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0281
Name
Turning Indexable Inserts
FamilyName
SNMM-NR
BrandName
Iscar
