QCMT 09T304-SM IC8250
Inserts with a positive 7° clearance and chipformer for finishing applications.
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Positive Inserts |
| Application | | Ext. 80° Q#MG 95° Approach | Int. 80° Q#MG 95° Approach | | Min D.O.C. | 0.5 mm |

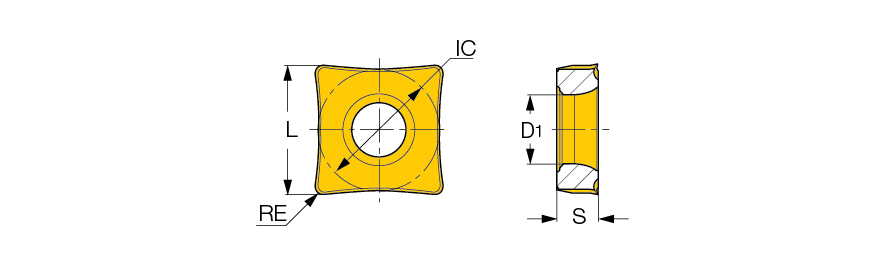

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2.5 mm |
| Insert Size | 3-1-SM | Min. Turning Feed (ft(min)) | 0.06 mm/rev |
| Cutting Edge Length (L) | 10.4 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.65 mm | Chip Breaker Type | SM |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC8250 | Unit | M |
| Fixing Hole Diameter (D1) | 4.4 mm |
Product Features
| Family Description | Inserts with a positive 7° clearance and chipformer for finishing applications. | FamilyName | QCMT-SM |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0055
Name
Turning Indexable Inserts
FamilyName
QCMT-SM
BrandName
Iscar
