DNMG 150612-TF IC807

Double-sided, 55° rhombic insert, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys.
ISOTURN
Item # ISC5550338
Brand: Iscar
Mfr#: 5550338
Please enter multiples of 10
Quantity Available
loading...
Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Tool Type Turn Negative Inserts
Application | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | Min D.O.C. 1.5 mm

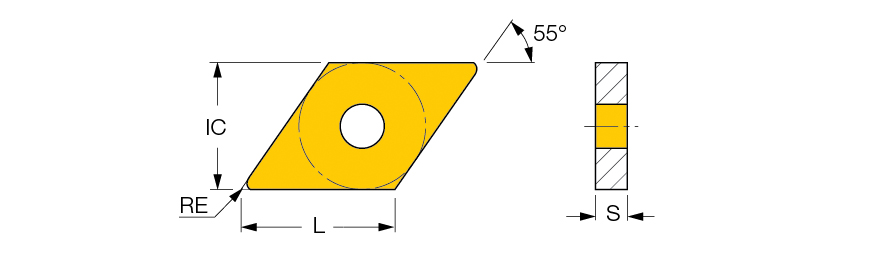

Corner Radius (RE) 1.2 mm Depth of Cut Maximum (APMX) 4 mm
Insert Size 443-TF Min. Turning Feed (ft(min)) 0.11 mm/rev
Cutting Edge Length (L) 15.5 mm Max. Turning Feed (ft(max)) 0.4 mm/rev
Insert Thickness (S) 6.35 mm Clearance Angle Major (AN) 0 Degrees
Inscribed Circle Diameter (IC) 12.7 mm Chip Breaker Type TF
Cutting Edge Material Carbide Measurement Type Metric
Coating TiAlN+TiN Body Material Carbide
Grade IC807 Unit M
DNMG 150612-TF IC807

Product Features

Family Description Double-sided, 55° rhombic insert, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys. FamilyName DNMG/DNGG-TF
Remarks For dimensions and tolerances, see more info. BrandName Iscar
COO Israel

Shipping Info

Weight per item
0.0186
