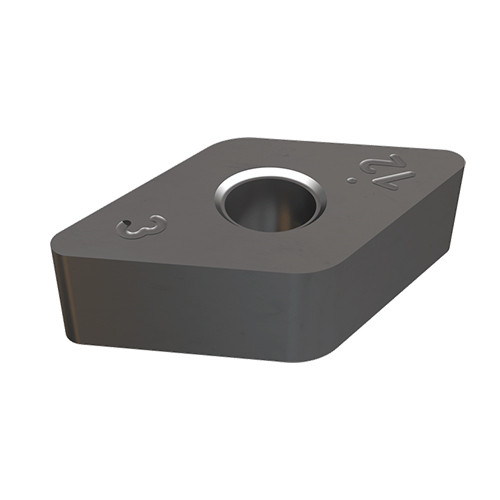

DNMA 150412 IC5005
Double-sided 55° rhombic inserts for short chipping materials such as cast iron.
| Applicable Material | | Steel | Cast Iron | Hard Materials | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Min D.O.C. | 1.5 mm |
| Insert Style | DNMA | Depth of Cut Maximum (APMX) | 4 mm |
| Corner Radius (RE) | 1.2 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 433 | Max. Turning Feed (ft(max)) | 0.4 mm/rev |

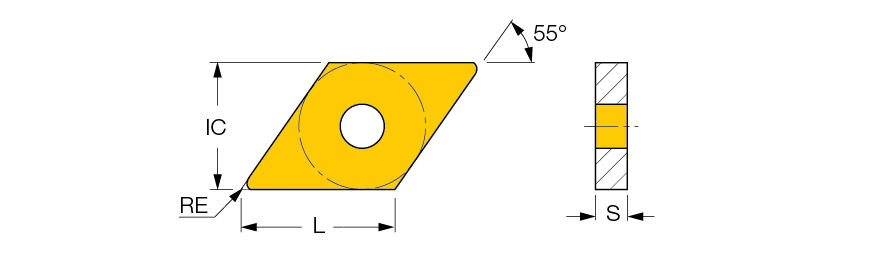

| Cutting Edge Length (L) | 15.5 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
| Grade | IC5005 |
Product Features
| Family Description | Double-sided 55° rhombic inserts for short chipping materials such as cast iron. | FamilyName | DNMA |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0146
Name
Turning Indexable Inserts
FamilyName
DNMA
BrandName
Iscar
