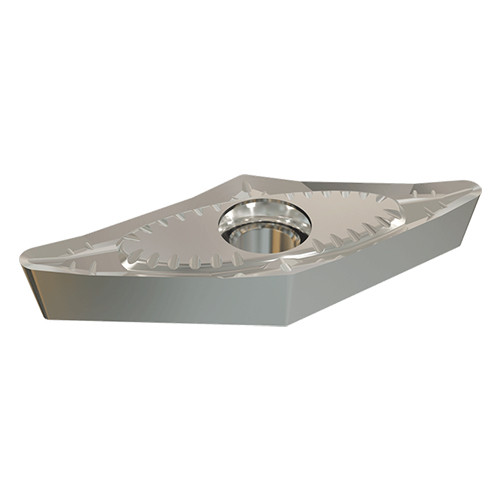

VCGT 220512-AF IC20
The -AF chipformer was designed for machining aluminum in a wide range of machining conditions. It is peripherally ground and has a polished rake face.
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 5.5 mm |
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 142° Approach | Int. 35° Diamond 93° Approach | Int. 35° Diamond 95° Approach | Int. Machining Aluminum Wheels | | Tool Type | Turn Inserts AL, HTA Geometric |
| Insert Style | VCGT | Min D.O.C. | 1 mm |
| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 4.5 mm |
| Insert Size | 220512 | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 22.1 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 5.56 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | AF |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC20 | Unit | M |
Product Features
| Family Description | The -AF chipformer was designed for machining aluminum in a wide range of machining conditions. It is peripherally ground and has a polished rake face. | FamilyName | VCGT-AF |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0222
Name
Turning Indexable Inserts
FamilyName
VCGT-AF
BrandName
Iscar
