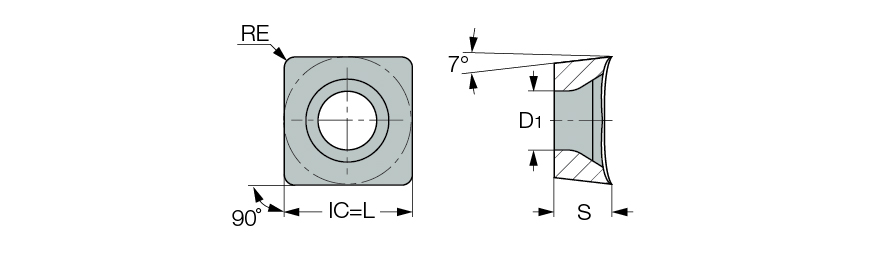

| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 5.5 mm |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | Int. 90° Square 75° Approach | | Tool Type | Turn Inserts AL, HTA Geometric |
| Insert Style | SCGT | Min D.O.C. | 1 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 4 mm |
| Insert Size | 120408 | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 12.7 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | AS |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC20 | Unit | M |
Product Features

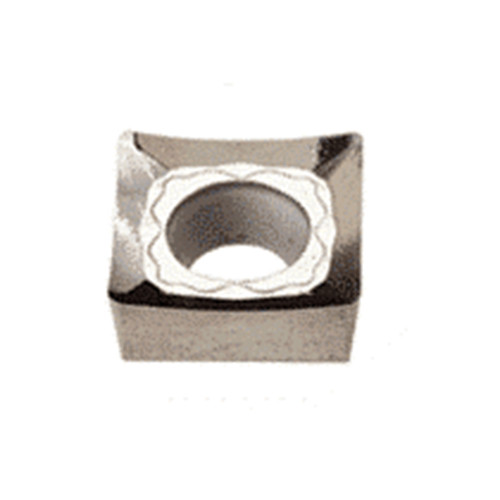

| Family Description | Square inserts with a 7° positive flank, very positive rake angle and sharp cutting edge for machining aluminum | FamilyName | SCGT-AS |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0079
Name
Turning Indexable Inserts
FamilyName
SCGT-AS
BrandName
Iscar
