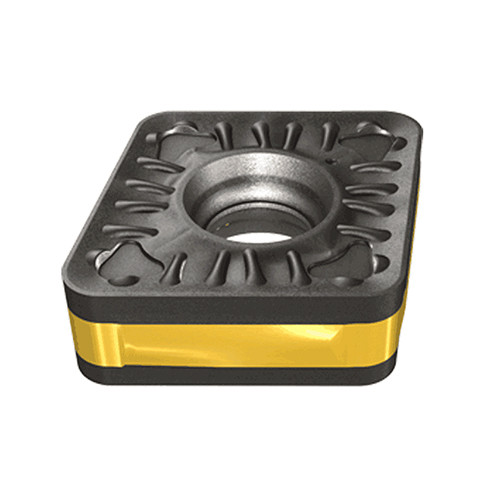

COMG 190624-R3P-IQ IC8150
Double-sided 7° negative side flank 80° rhombic inserts for heavy turning of steel.
| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Negative Inserts |

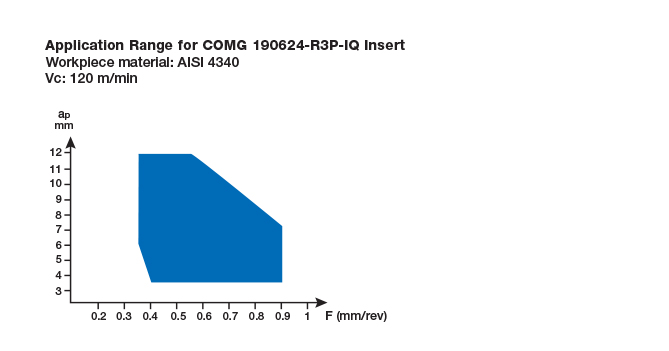

| Application | | Ext. 100° Diamond 75° Approach | Ext. 80° Diamond 95° Approach | | Min D.O.C. | 3.5 mm |

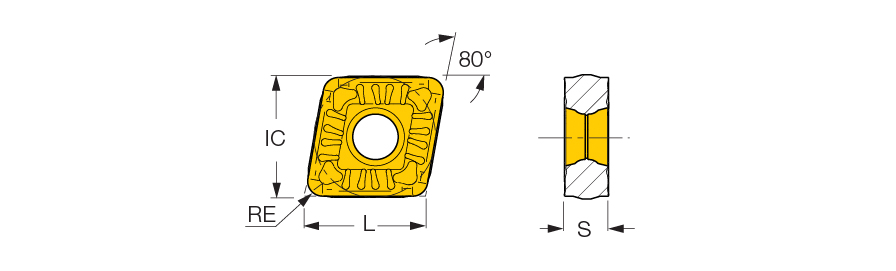

| Corner Radius (RE) | 2.4 mm | Depth of Cut Maximum (APMX) | 12 mm |
| Insert Size | 646-R3 | Min. Turning Feed (ft(min)) | 0.35 mm/rev |
| Cutting Edge Length (L) | 19.34 mm | Max. Turning Feed (ft(max)) | 0.9 mm/rev |
| Insert Thickness (S) | 6.35 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 19.05 mm | Chip Breaker Type | R3P |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiCN+TiN | Body Material | Carbide |
| Grade | IC8150 | Unit | M |
Product Features
| Family Description | Double-sided 7° negative side flank 80° rhombic inserts for heavy turning of steel. | FamilyName | COMG-R3P-IQ |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0305
Name
Turning Indexable Inserts
FamilyName
COMG-R3P-IQ
BrandName
Iscar
