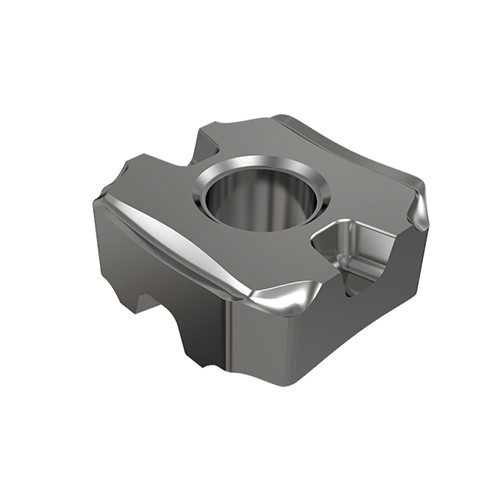

SNMG 120408-EM-R IC806
Double-sided Square inserts with 4 cutting edges (2 on each side) and truncated radii which facilitate heat transfer. Sharp cutting edge with a positive 16° chipformer rake angle. Used for machining high temperature alloys at ap<3 mm.
| Applicable Material | | Super-Alloys / Titanium | | Tool Type | Turn Inserts AL, HTA Geometric |
| Application | | Ext. 90°Square 45°Face&Turn Ap | | Min D.O.C. | 3 mm |

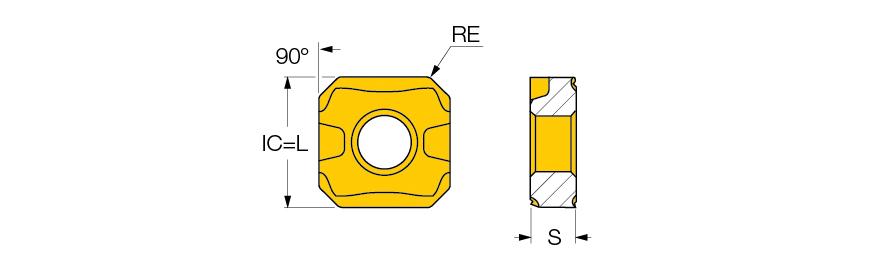

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 6 mm |
| Insert Size | 432-EM | Min. Turning Feed (ft(min)) | 0.25 mm/rev |
| Cutting Edge Length (L) | 12.7 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | EMR |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlTiN "SUMO TEC" | Body Material | Carbide |
| Grade | IC806 | Unit | M |
Product Features
| Family Description | Double-sided Square inserts with 4 cutting edges (2 on each side) and truncated radii which facilitate heat transfer. Sharp cutting edge with a positive 16° chipformer rake angle. Used for machining high temperature alloys at ap<3 mm. | FamilyName | SNMG-EM-M/R |
| Remarks | Requires the use of RST 443R/L SET - seat when used on DSSNR/L tools and TSN 423-PIN SET seat when used on PSSNR/L-JHP and PSDNN-JHP tools For operating instructions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0099
Name
Turning Indexable Inserts
FamilyName
SNMG-EM-M/R
BrandName
Iscar
