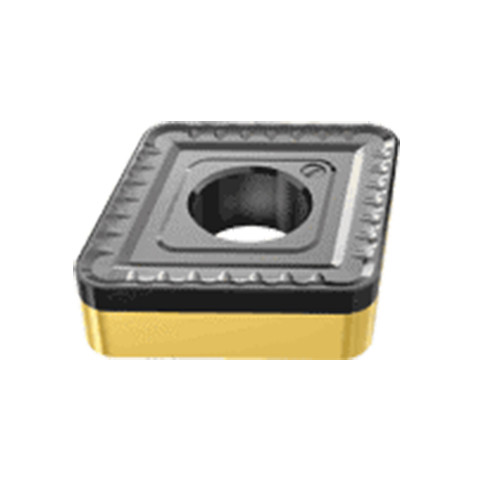

CNMM 190624-H3P IC8150
Single-sided, 80°, rhombic insert with a strong cutting edge. Used for extra rough turning in the windmill and shipbuilding industries.
| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Min D.O.C. | 4 mm |

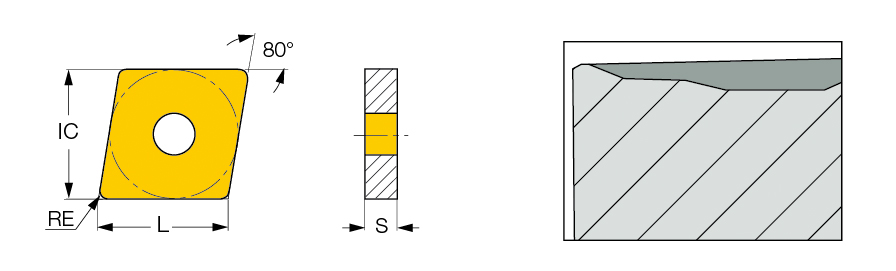

| Corner Radius (RE) | 2.4 mm | Depth of Cut Maximum (APMX) | 9 mm |
| Insert Size | 646-H3 | Min. Turning Feed (ft(min)) | 0.55 mm/rev |
| Cutting Edge Length (L) | 19.34 mm | Max. Turning Feed (ft(max)) | 1.2 mm/rev |
| Insert Thickness (S) | 6.35 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 19.05 mm | Chip Breaker Type | H3P |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiCN+TiN | Body Material | Carbide |
| Grade | IC8150 | Unit | M |
| Fixing Hole Diameter (D1) | 7.94 mm |
Product Features
| Family Description | Single-sided, 80°, rhombic insert with a strong cutting edge. Used for extra rough turning in the windmill and shipbuilding industries. | FamilyName | CNMM-H3P |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0282
Name
Turning Indexable Inserts
FamilyName
CNMM-H3P
BrandName
Iscar
