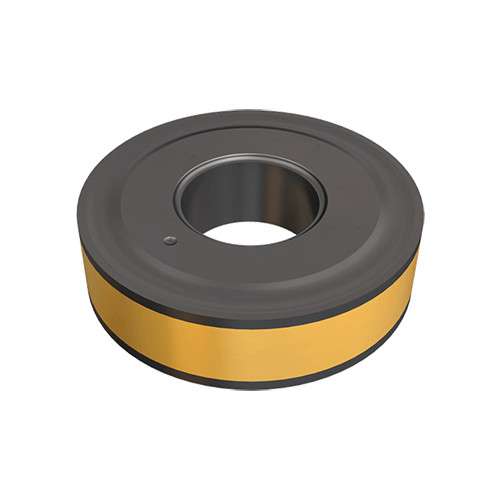

RNMG 120400 IC8250
Double-sided round negative insert for medium and rough profiling.
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 2 mm |
| Application | | Ext. Round Face & Turn | | Depth of Cut Maximum (APMX) | 5 mm |
| Insert Size | 43 | Min. Turning Feed (ft(min)) | 0.3 mm/rev |

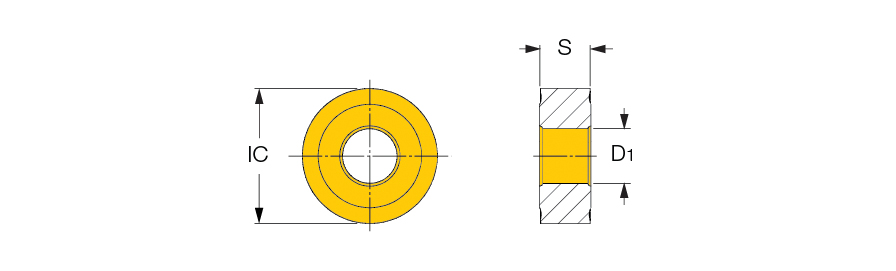

| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Material | Carbide | Chip Breaker Type | G |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Metric |
| Grade | IC8250 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 5.15 mm | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Double-sided round negative insert for medium and rough profiling. | FamilyName | RNMG |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0082
Name
Turning Indexable Inserts
FamilyName
RNMG
BrandName
Iscar
