| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Min D.O.C. | 1.5 mm |
| Insert Style | CNMM | Depth of Cut Maximum (APMX) | 6 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.24 mm/rev |
| Insert Size | 120408 | Max. Turning Feed (ft(max)) | 0.59 mm/rev |
| Cutting Edge Length (L) | 12.9 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | HTW |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiCN+TiN | Body Material | Carbide |
| Grade | IC8150 | Unit | M |
| Fixing Hole Diameter (D1) | 5.16 mm |
Product Features

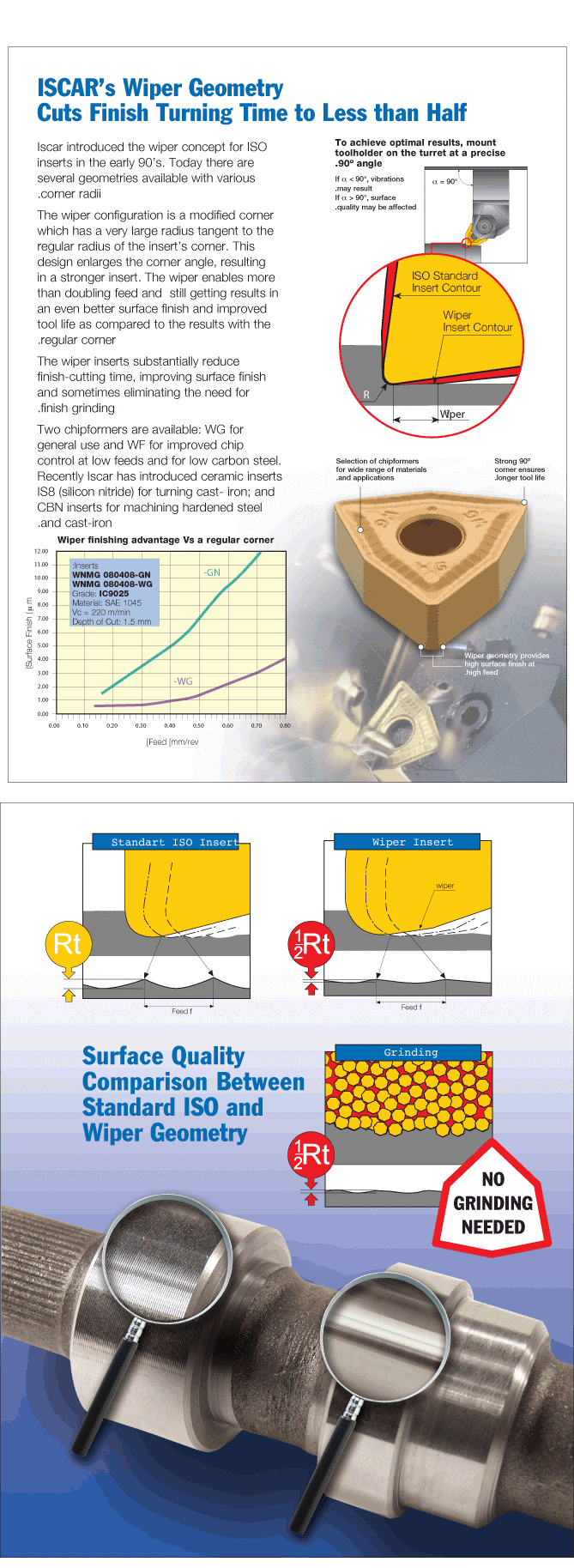

| Family Description | The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces. A wiper corner design produces a high surface finish even at high feed rates. Used for heavy machining applications. | FamilyName | CNMM-M4PW |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0094
Name
Turning Indexable Inserts
FamilyName
CNMM-M4PW
BrandName
Iscar
