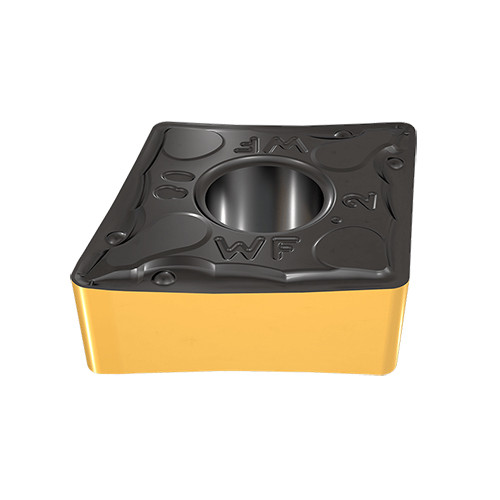

CNMG 120408-WF IC8150

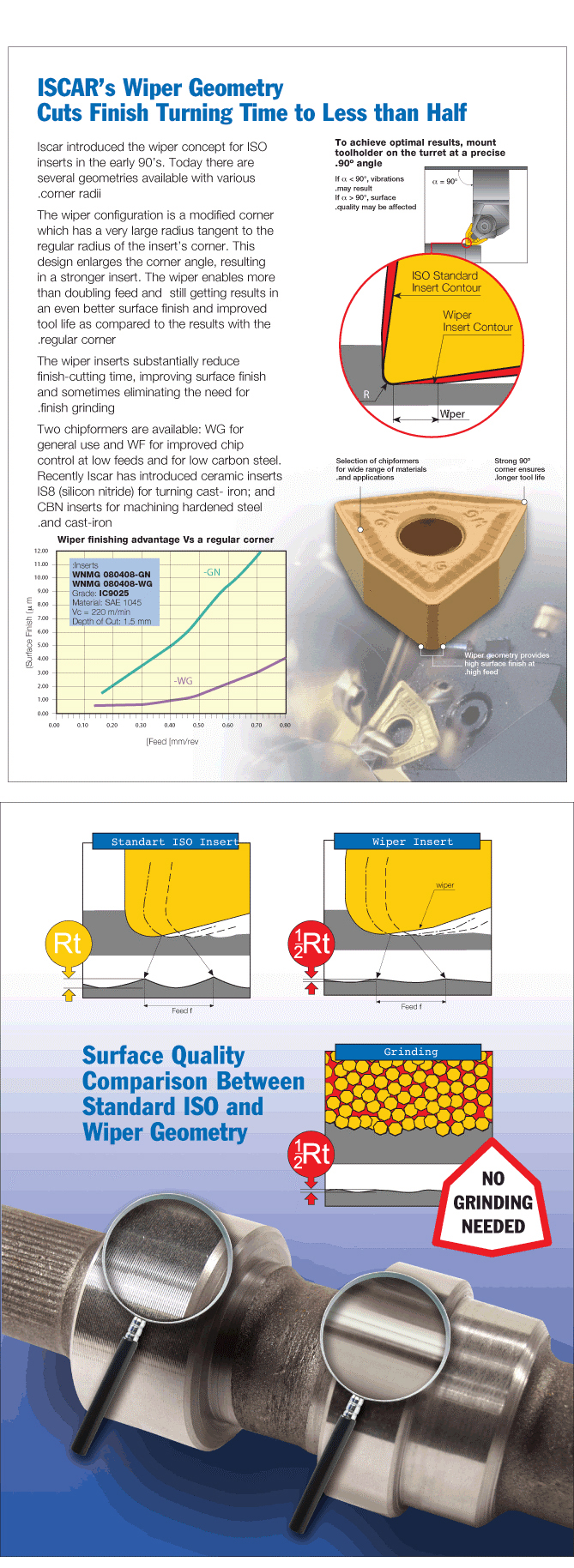

Double-sided 80° rhombic wiper inserts, used for finishing operations at high feeds. Three to five times better surface finish compared to standard turning inserts at the same feeds.
| Applicable Material | | Steel | Cast Iron | | Fixing Hole Diameter (D1) | 5.16 mm |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | CNMG | Min D.O.C. | 0.8 mm |

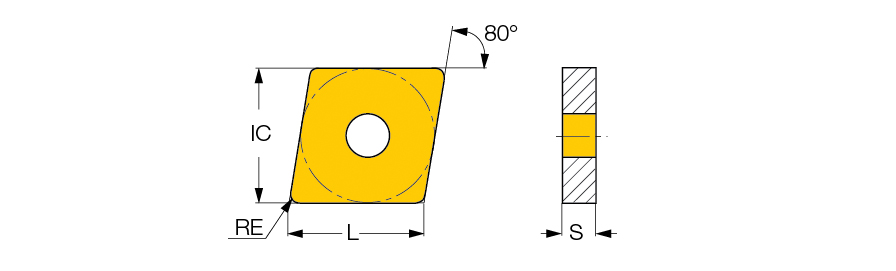

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 3.5 mm |
| Insert Size | 432-WF | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 12.9 mm | Max. Turning Feed (ft(max)) | 0.35 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | WF |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiCN+TiN | Body Material | Carbide |
| Grade | IC8150 | Unit | M |
Product Features
| Family Description | Double-sided 80° rhombic wiper inserts, used for finishing operations at high feeds. Three to five times better surface finish compared to standard turning inserts at the same feeds. | FamilyName | CNMG-WF |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0103
Name
Turning Indexable Inserts
FamilyName
CNMG-WF
BrandName
Iscar
