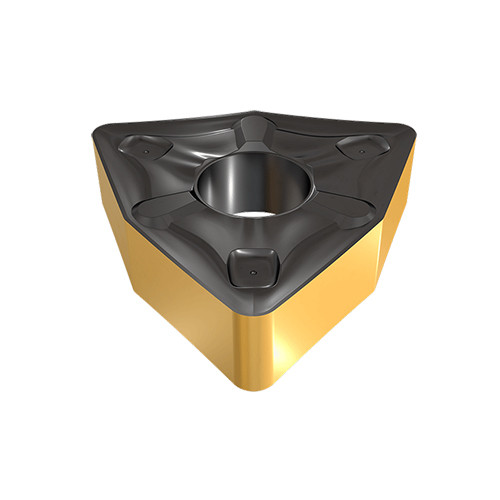

WNMG 130612-TNM IC8250
Double-sided trigon inserts used for semi-rough and roughing applications. A special seat enables using both insert sides. Three times more cutting edges compared to an equivalent-sized rhombic insert.
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Min D.O.C. | 2.5 mm |
| Insert Style | WNMG | Depth of Cut Maximum (APMX) | 7 mm |
| Corner Radius (RE) | 1.2 mm | Min. Turning Feed (ft(min)) | 0.25 mm/rev |
| Insert Size | 643-TN | Max. Turning Feed (ft(max)) | 0.65 mm/rev |

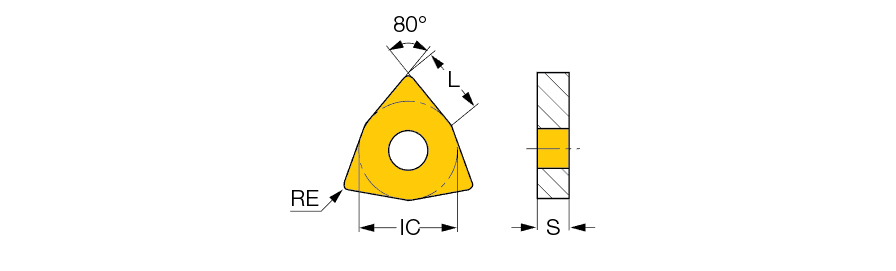

| Cutting Edge Length (L) | 13.03 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 6.35 mm | Chip Breaker Type | TNM |
| Inscribed Circle Diameter (IC) | 19.05 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
| Grade | IC8250 |
Product Features
| Family Description | Double-sided trigon inserts used for semi-rough and roughing applications. A special seat enables using both insert sides. Three times more cutting edges compared to an equivalent-sized rhombic insert. | FamilyName | WNMG-TNM |
| Remarks | This inserts should be used with SEAT IWSN 635M3 for insert size 1306# and SEAT IWSN 433M for insert size 0804# For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0278
Name
Turning Indexable Inserts
FamilyName
WNMG-TNM
BrandName
Iscar
