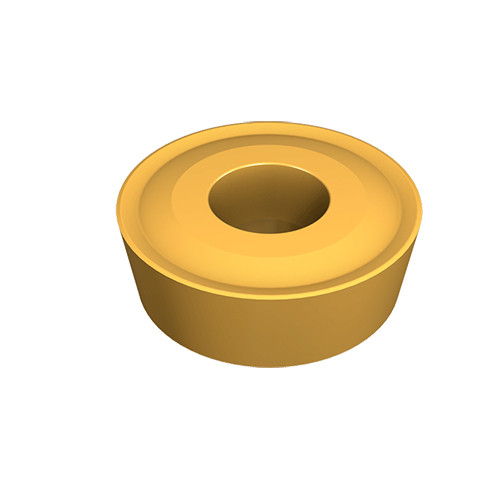

RCMX 120400 IC9250
Round 7° positive flank inserts with reinforced cutting edge for semi-roughing & rough profiling on a wide range of materials.
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 1.5 mm |
| Application | | Ext. Round Face & Turn | | Depth of Cut Maximum (APMX) | 6 mm |
| Insert Size | 120400 | Min. Turning Feed (ft(min)) | 0.3 mm/rev |

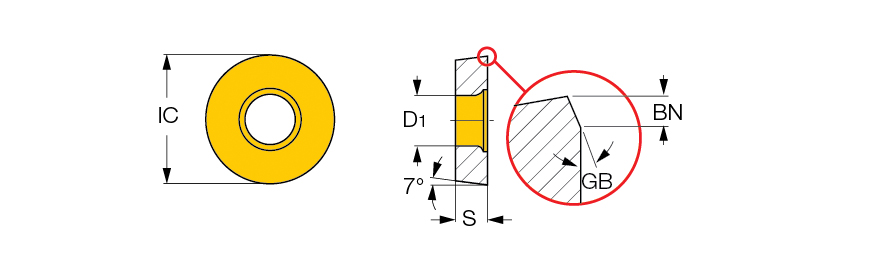

| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Inscribed Circle Diameter (IC) | 12 mm | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide | Chip Breaker Type | G |
| Coating | TiCN+alpha Al2O3+TiN | Measurement Type | Metric |
| Grade | IC9250 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 4.2 mm | Unit | M |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Round 7° positive flank inserts with reinforced cutting edge for semi-roughing & rough profiling on a wide range of materials. | FamilyName | RCMX |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0069
Name
Turning Indexable Inserts
FamilyName
RCMX
BrandName
Iscar
