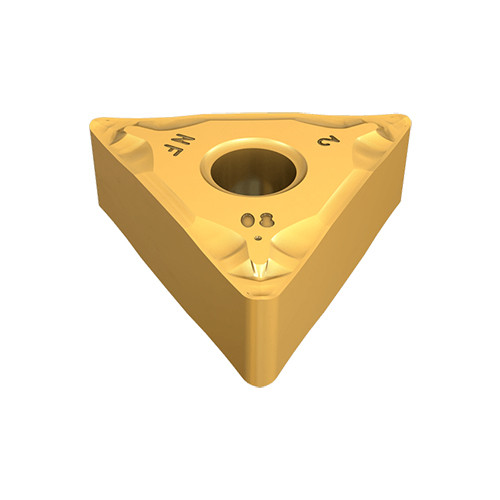

TNMG 110304-NF IC9250
Double-sided triangular inserts for semi-finishing & finishing applications. Low cutting forces due to sharp cutting edge and a positive rake angle.
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle 93° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Min D.O.C. | 0.4 mm |

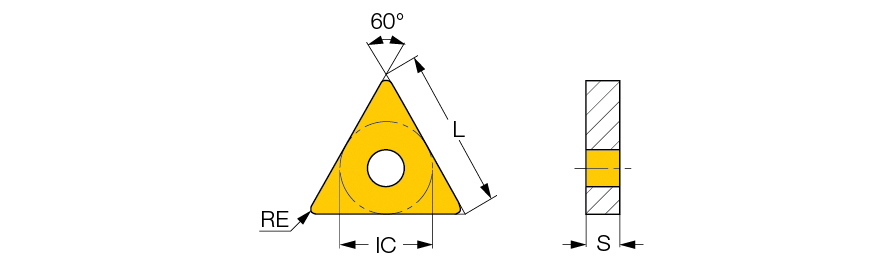

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Insert Size | 221-NF | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Cutting Edge Length (L) | 11 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 3.18 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | NF |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+alpha Al2O3+TiN | Body Material | Carbide |
| Grade | IC9250 | Unit | M |
Product Features
| Family Description | Double-sided triangular inserts for semi-finishing & finishing applications. Low cutting forces due to sharp cutting edge and a positive rake angle. | FamilyName | TNMG-NF |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0032
Name
Turning Indexable Inserts
FamilyName
TNMG-NF
BrandName
Iscar
