| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Min D.O.C. | 2 mm |
| Insert Style | DNMG | Depth of Cut Maximum (APMX) | 6 mm |
| Corner Radius (RE) | 1.6 mm | Min. Turning Feed (ft(min)) | 0.25 mm/rev |
| Insert Size | 150616 | Max. Turning Feed (ft(max)) | 0.5 mm/rev |

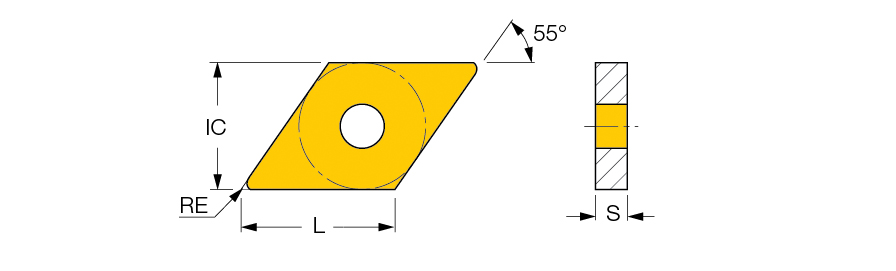

| Cutting Edge Length (L) | 15.5 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 6.35 mm | Chip Breaker Type | NR |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+alpha Al2O3+TiN | Unit | M |
| Grade | IC9350 |
Product Features

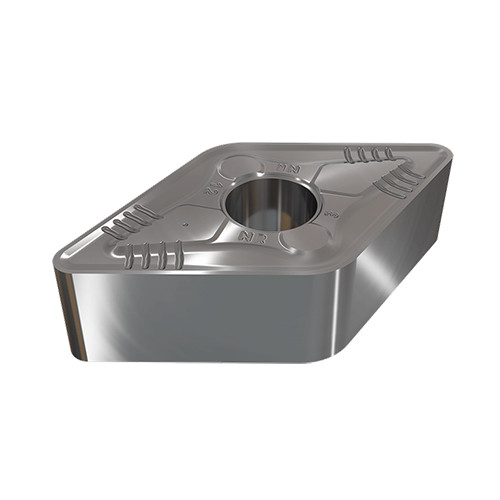

| Family Description | Double-sided 55° rhombic inserts with a special chipformer for heavy machining. | FamilyName | DNMG-NR |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0172
Name
Turning Indexable Inserts
FamilyName
DNMG-NR
BrandName
Iscar
