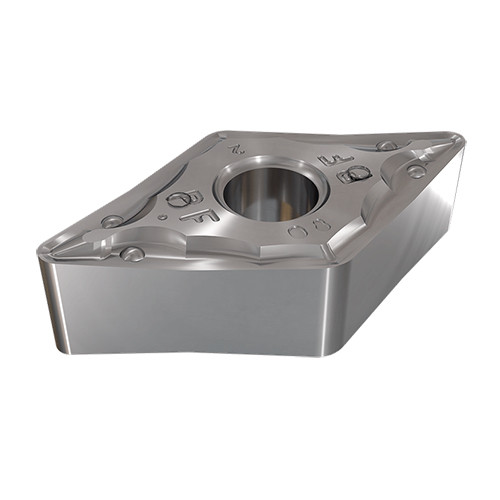

DNMG 110408-PF IC9150
Double-sided 55° rhombic inserts. Used for finishing applications on alloyed and stainless steel.
| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Min D.O.C. | 0.3 mm |

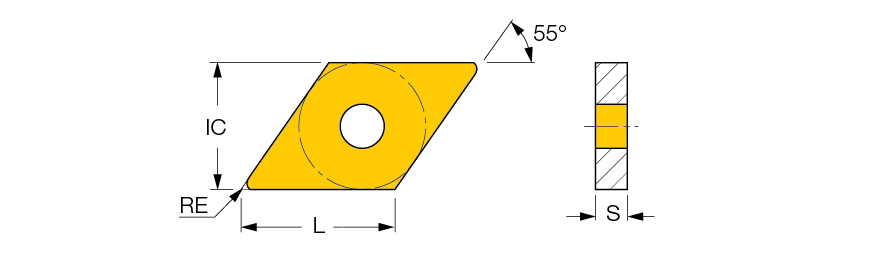

| Insert Style | DNMG | Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Insert Size | 110408 | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 11.63 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | PF |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
| Grade | IC9150 |
Product Features
| Family Description | Double-sided 55° rhombic inserts. Used for finishing applications on alloyed and stainless steel. | FamilyName | DNMG-PF |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0074
Name
Turning Indexable Inserts
FamilyName
DNMG-PF
BrandName
Iscar
