SCMT 120408-19 IC907
Square 7° positive rake inserts for semi-roughing applications. Strong cutting edge, used at medium to high feeds.

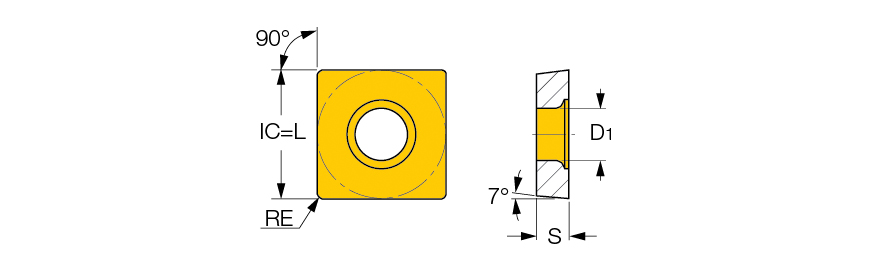

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 5.5 mm |
| Application | | Chamfering & Bottom Deburring | Countersinking | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | Int. 90° Square 75° Approach | Slanted Shoulder & Chamfer | | Tool Type | Turn Positive Inserts |
| Insert Style | SCMT | Min D.O.C. | 3 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 8 mm |
| Insert Size | 432-19 | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 12.7 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | 19 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC907 | Unit | M |
Product Features
| Family Description | Square 7° positive rake inserts for semi-roughing applications. Strong cutting edge, used at medium to high feeds. | FamilyName | SCMT-19 |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0067
Name
Turning Indexable Inserts
FamilyName
SCMT-19
BrandName
Iscar
