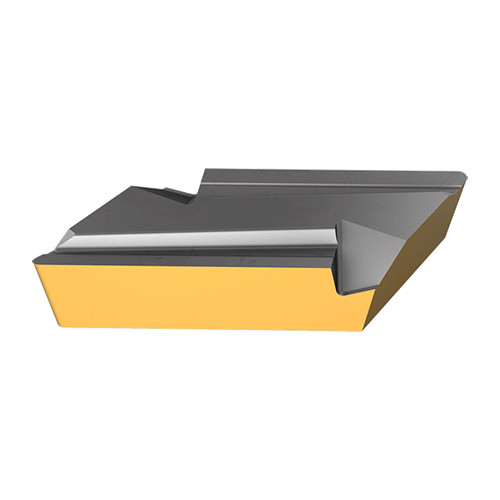

KNUX 160405 L12 IC8150
55° parallelogram inserts for profiling. Negative along the cutting edge and positive flank along the narrow edge.
| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 1.5 mm |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Depth of Cut Maximum (APMX) | 4 mm |

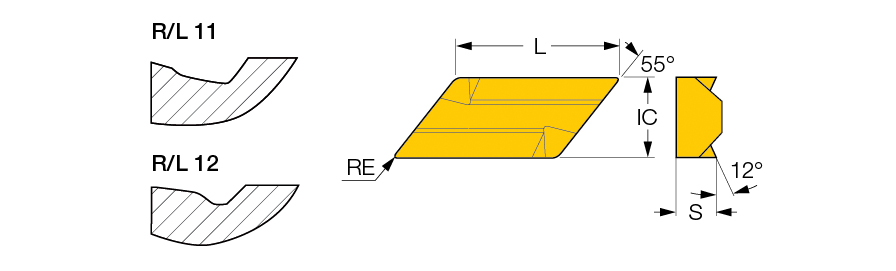

| Corner Radius (RE) | 0.5 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Size | 3331 L | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Cutting Edge Length (L) | 19.72 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | R/L12 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiCN+TiN | Body Material | Carbide |
| Grade | IC8150 | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | 55° parallelogram inserts for profiling. Negative along the cutting edge and positive flank along the narrow edge. | FamilyName | KNUX |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.0138
Name
Turning Indexable Inserts
FamilyName
KNUX
BrandName
Iscar
