CNMG 120412-TF IC20

Double-sided 80° rhombic inserts, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys.
ISOTURN
Item # ISC5503803
Brand: Iscar
Mfr#: 5503803
Please enter multiples of 10
Quantity Available
loading...
Applicable Material | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | Tool Type Turn Negative Inserts
Application | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | Min D.O.C. 1.5 mm

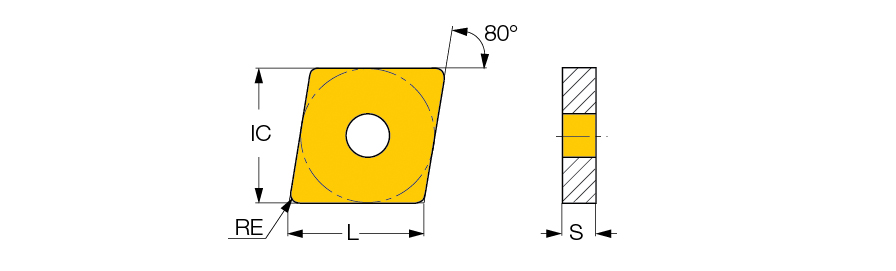

Corner Radius (RE) 1.2 mm Depth of Cut Maximum (APMX) 4.5 mm
Insert Size 433-TF Min. Turning Feed (ft(min)) 0.15 mm/rev
Cutting Edge Length (L) 12.9 mm Max. Turning Feed (ft(max)) 0.4 mm/rev
Insert Thickness (S) 4.76 mm Clearance Angle Major (AN) 0 Degrees
Inscribed Circle Diameter (IC) 12.7 mm Chip Breaker Type TF
Cutting Edge Material Carbide Measurement Type Metric
Coating Uncoated Body Material Carbide
Grade IC20 Unit M
Fixing Hole Diameter (D1) 5.16 mm
CNMG 120412-TF IC20

Product Features

Family Description Double-sided 80° rhombic inserts, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys. FamilyName CNMG/CNGG-TF
Remarks For dimensions and tolerances, see more info. BrandName Iscar
COO Israel

Shipping Info

Weight per item
0.0108
Name
Turning Indexable Inserts
FamilyName
CNMG/CNGG-TF
BrandName
Iscar
