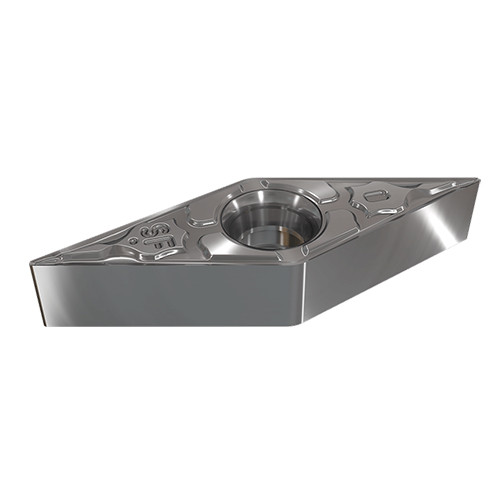

VNMG 12T302-SF IC570
Double-sided 35° rhombic inserts used for super finishing. Controls chip flow at very low feed and depth of cut. Excellent crater wear resistance.
| Applicable Material | | Steel | Stainless Steel | | Fixing Hole Diameter (D1) | 3.55 mm |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | VNMG | Min D.O.C. | 0.3 mm |

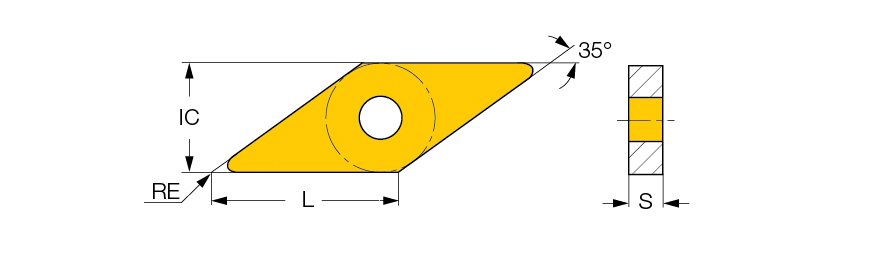

| Corner Radius (RE) | 0.2 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Insert Size | 2.5-0- | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 12.4 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 7.15 mm | Chip Breaker Type | SF |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC570 | Unit | M |
Product Features
| Family Description | Double-sided 35° rhombic inserts used for super finishing. Controls chip flow at very low feed and depth of cut. Excellent crater wear resistance. | FamilyName | VNMG-SF |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0048
Name
Turning Indexable Inserts
FamilyName
VNMG-SF
BrandName
Iscar
