WBMT 060102L IC350

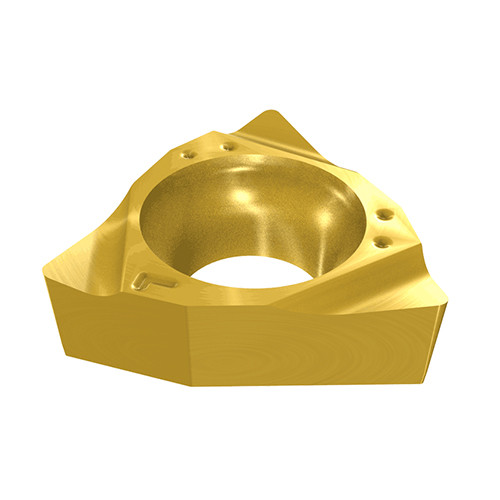

Trigon inserts with a 5° positive flank ground chipformer. Used for for finishing on miniature boring bars, provide excellent surface finish. Suitable for a wide range of materials.
| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Positive Inserts |
| Application | | Int. 80° Trigon 93° Approach | | Min D.O.C. | 0.4 mm |
| Insert Style | WBMT | Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 0.2 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Size | 520L | Max. Turning Feed (ft(max)) | 0.15 mm/rev |

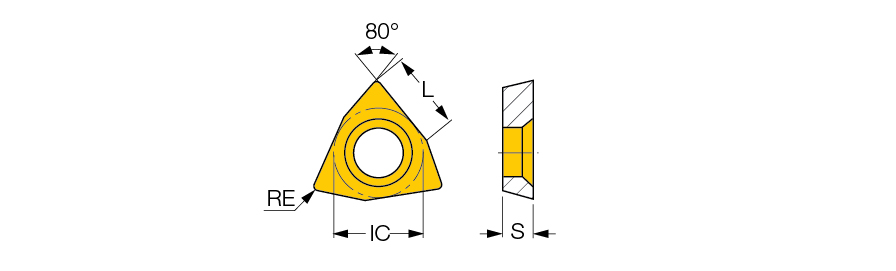

| Cutting Edge Length (L) | 2.18 mm | Clearance Angle Major (AN) | 5 Degrees |
| Insert Thickness (S) | 1.59 mm | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 3.97 mm | Chip Breaker Type | T |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC350 | Unit | M |
Product Features
| Family Description | Trigon inserts with a 5° positive flank ground chipformer. Used for for finishing on miniature boring bars, provide excellent surface finish. Suitable for a wide range of materials. | FamilyName | WBMT |
| Remarks | WBMT 06...R right-hand inserts used on left-hand tools and WBMT 06...L left-hand inserts used on right-hand tools. For dimensions and tolerances, Click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0015
Name
Turning Indexable Inserts
FamilyName
WBMT
BrandName
Iscar
