| Applicable Material | | Steel | Stainless Steel | Hard Materials | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | | Tool Type | Turn Positive Inserts |
| Insert Style | DCMT | Min D.O.C. | 0.5 mm |

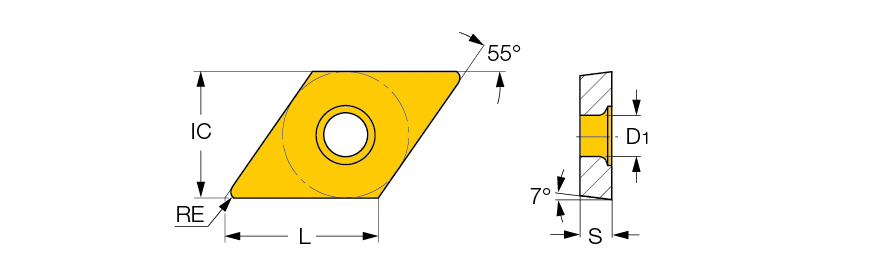

| Corner Radius (RE) | 0.2 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Insert Size | 11T302 | Min. Turning Feed (ft(min)) | 0.08 mm/rev |
| Cutting Edge Length (L) | 11.6 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | 14 |
| Cutting Edge Material | Cermet | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC30N | Unit | M |
Product Features

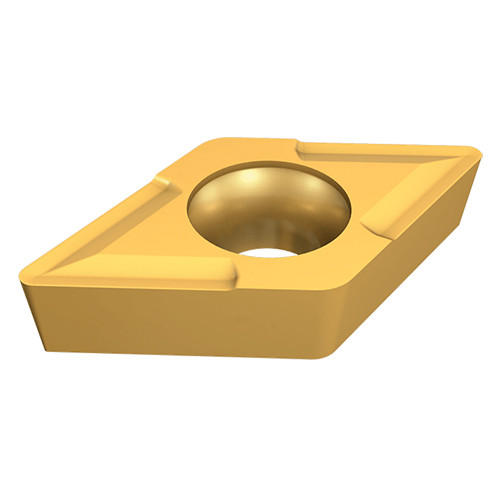

| Family Description | 55° rhombic inserts with a 7° positive clearance for finishing applications. | FamilyName | DCMT/DCGT |
| Remarks | For dimensions and tolerances, Click on More Info Right-hand inserts for right-hand external tools and for left-hand internal tools. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0035
Name
Turning Indexable Inserts
FamilyName
DCMT/DCGT
BrandName
Iscar
