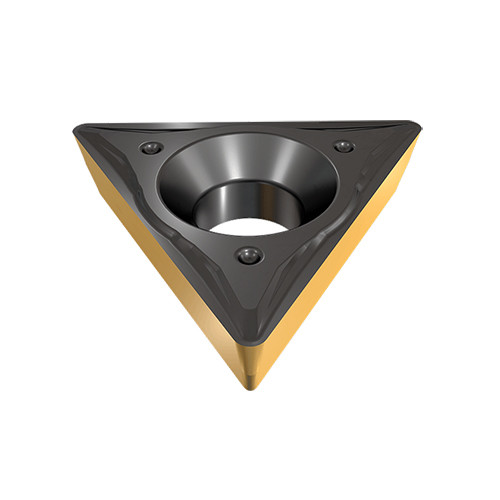

TPMT 160304 IC20
11° positive triangular inserts. Positive chipformer, low cutting forces. Used for internal turning and for finishing.

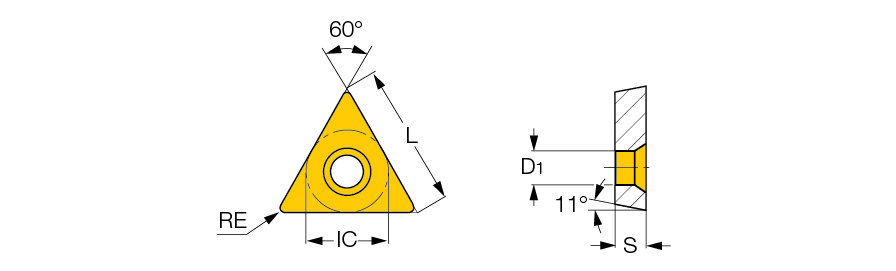

| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 4.3 mm |
| Application | | Chamfering & Bottom Deburring | Countersinking | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | Slanted Shoulder & Chamfer | | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.4 mm | Min D.O.C. | 1 mm |
| Insert Size | 321 | Depth of Cut Maximum (APMX) | 4 mm |
| Cutting Edge Length (L) | 16.5 mm | Min. Turning Feed (ft(min)) | 0.12 mm/rev |
| Insert Thickness (S) | 3.18 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC20 | Unit | M |
Product Features
| Family Description | 11° positive triangular inserts. Positive chipformer, low cutting forces. Used for internal turning and for finishing. | FamilyName | TPMT |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0053
Name
Turning Indexable Inserts
FamilyName
TPMT
BrandName
Iscar
