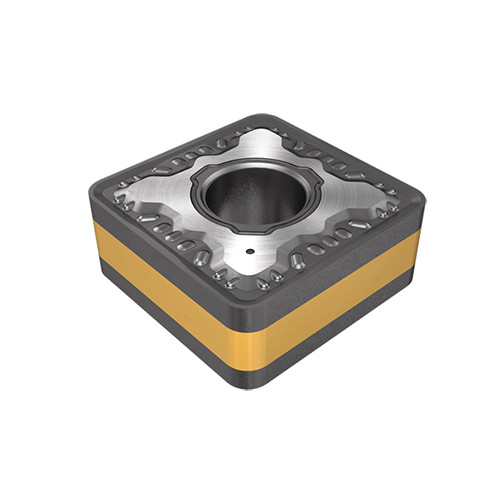

SNMG 190616-R3P IC8250
Double-Sided Square Inserts with Chipformer for rough Machining
| Applicable Material | | Steel | Stainless Steel | | Fixing Hole Diameter (D1) | 7.94 mm |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Int. Square 75° Approach | | Tool Type | Turn Negative Inserts |

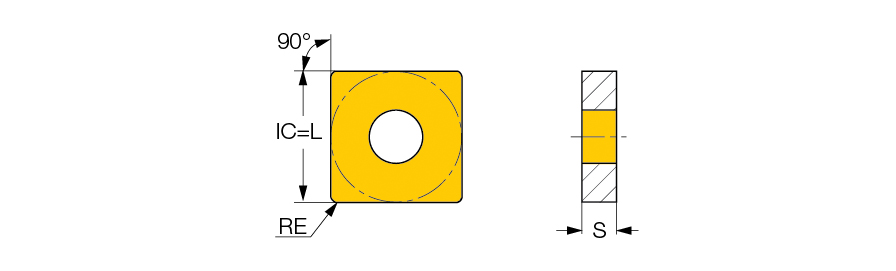

| Corner Radius (RE) | 1.6 mm | Min D.O.C. | 3.5 mm |
| Insert Size | 644-R3 | Depth of Cut Maximum (APMX) | 10 mm |
| Cutting Edge Length (L) | 19.05 mm | Min. Turning Feed (ft(min)) | 0.4 mm/rev |
| Insert Thickness (S) | 6.35 mm | Max. Turning Feed (ft(max)) | 0.85 mm/rev |
| Inscribed Circle Diameter (IC) | 19.05 mm | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC8250 | Unit | M |
Product Features
| Family Description | Double-Sided Square Inserts with Chipformer for rough Machining | FamilyName | SNMG-R3P |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0296
Name
Turning Indexable Inserts
FamilyName
SNMG-R3P
BrandName
Iscar
