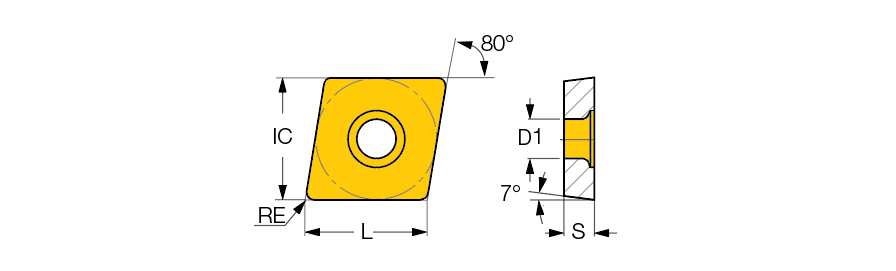

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Int. 80° Diamond 95° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | CCGT | Min D.O.C. | 0.07 mm |
| Corner Radius (RE) | 0.1 mm | Depth of Cut Maximum (APMX) | 4.5 mm |
| Insert Size | 09T301 | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 9.67 mm | Max. Turning Feed (ft(max)) | 0.18 mm/rev |
| Insert Thickness (S) | 3.97 mm | Chip Breaker Type | F1M |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
| Grade | IC1008 |
Product Features

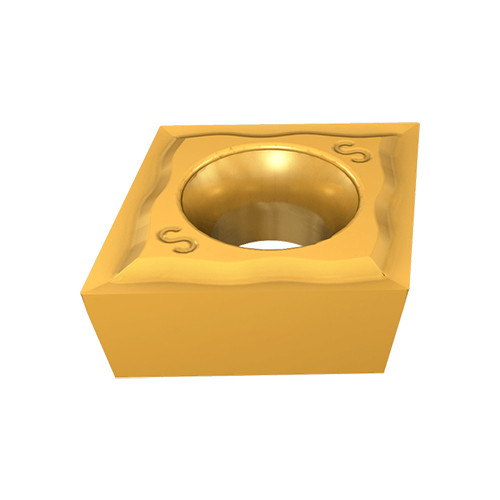

| Family Description | 80° rhombic 7° flank inserts for very low finish turning conditions of steel. Low cutting forces due to sharp ground cutting edge and a positive rake angle. | FamilyName | CCGT-F1M-12P |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0065
Name
Turning Indexable Inserts
FamilyName
CCGT-F1M-12P
BrandName
Iscar
