CXMG 090402-F3P IC8150
80° double-sided and double-positive rhombic inserts with a positive rake for finishing on alloyed steel. Clamped in a dovetail rigid clamping pocket. Can be regarded as two positive inserts.
| Applicable Material | | Steel | Cast Iron | | Grade | IC8150 |
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Tool Type | Turn Negative Inserts |

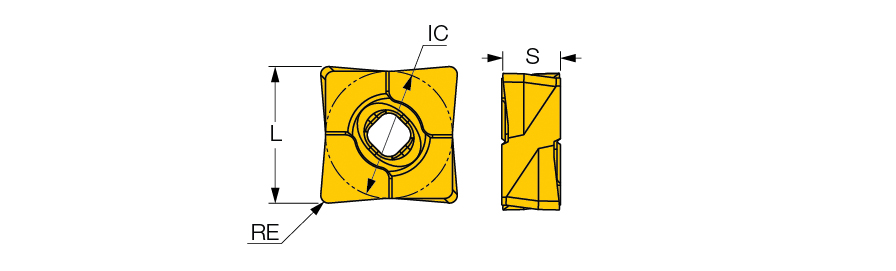

| Corner Radius (RE) | 0.2 mm | Min D.O.C. | 0.3 mm |
| Insert Size | 090402 | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 10.4 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Insert Thickness (S) | 4.66 mm | Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Inscribed Circle Diameter (IC) | 9.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiCN+TiN | Unit | M |
Product Features
| Family Description | 80° double-sided and double-positive rhombic inserts with a positive rake for finishing on alloyed steel. Clamped in a dovetail rigid clamping pocket. Can be regarded as two positive inserts. | FamilyName | CXMG-F3P |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0063
Name
Turning Indexable Inserts
FamilyName
CXMG-F3P
BrandName
Iscar
