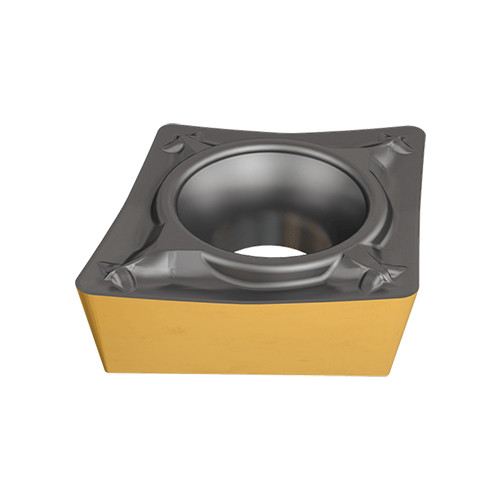

CCMT 120408-M3P IC8250
80° rhombic positive flank inserts for medium machining conditions on steel.
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Positive Inserts |
| Application | | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Min D.O.C. | 1 mm |

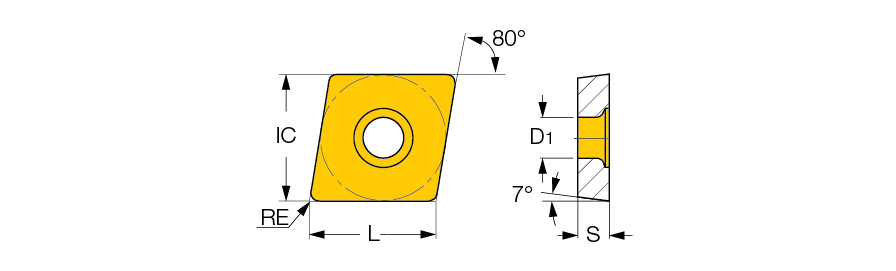

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 4 mm |
| Insert Size | 432-M3 | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Cutting Edge Length (L) | 12.9 mm | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | M3P |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC8250 | Unit | M |
| Fixing Hole Diameter (D1) | 5.5 mm |
Product Features
| Family Description | 80° rhombic positive flank inserts for medium machining conditions on steel. | FamilyName | CCMT-M3P |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0092
Name
Turning Indexable Inserts
FamilyName
CCMT-M3P
BrandName
Iscar
