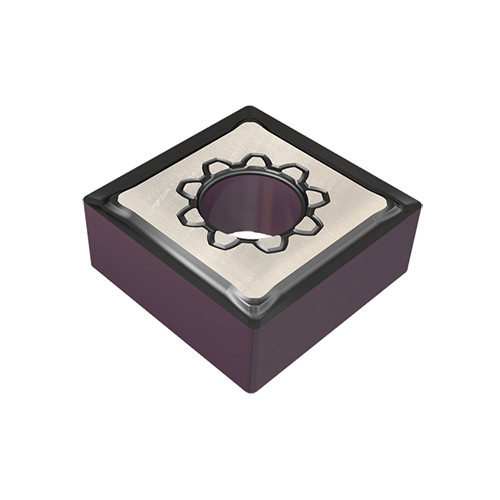

SNMG 120404-F3S IC804
Double-sided 90° rhombic inserts for titanium and heat resistant materials for finishing applications
| Applicable Material | | Super-Alloys / Titanium | | Grade | IC804 |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Int. Square 75° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | SNMG | Min D.O.C. | 0.1 mm |

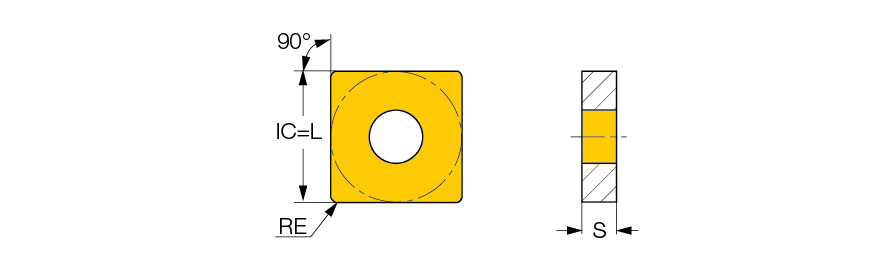

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 1.5 mm |
| Insert Size | 431-F3 | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 12.7 mm | Max. Turning Feed (ft(max)) | 0.35 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN "SUMO TEC" | Unit | M |
Product Features
| Family Description | Double-sided 90° rhombic inserts for titanium and heat resistant materials for finishing applications | FamilyName | SNMG-F3S |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0112
Name
Turning Indexable Inserts
FamilyName
SNMG-F3S
BrandName
Iscar
