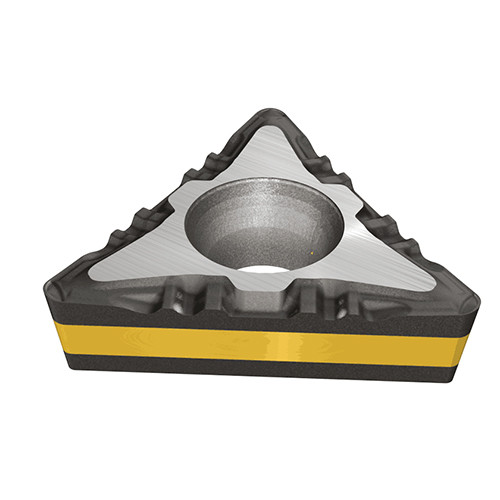

TCMT 090202-F3P IC830
Triangular positive flank inserts for semi-finishing & finishing of steel. Low cutting forces due to sharp cutting edge and a positive rake angle, providing very reliable performance and excellent tool life.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 2.5 mm |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 90° Approach | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | TCMT | Min D.O.C. | 0.06 mm |

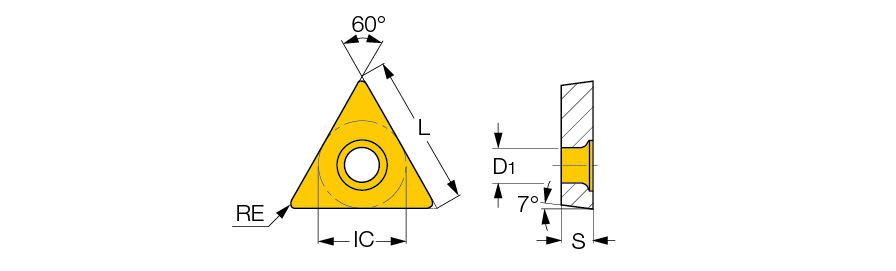

| Corner Radius (RE) | 0.2 mm | Depth of Cut Maximum (APMX) | 1.7 mm |
| Insert Size | 730-F3 | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 9.6 mm | Max. Turning Feed (ft(max)) | 0.14 mm/rev |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 5.56 mm | Chip Breaker Type | F3P |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 | Unit | M |
Product Features
| Family Description | Triangular positive flank inserts for semi-finishing & finishing of steel. Low cutting forces due to sharp cutting edge and a positive rake angle, providing very reliable performance and excellent tool life. | FamilyName | TCMT-F3P |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0023
Name
Turning Indexable Inserts
FamilyName
TCMT-F3P
BrandName
Iscar
