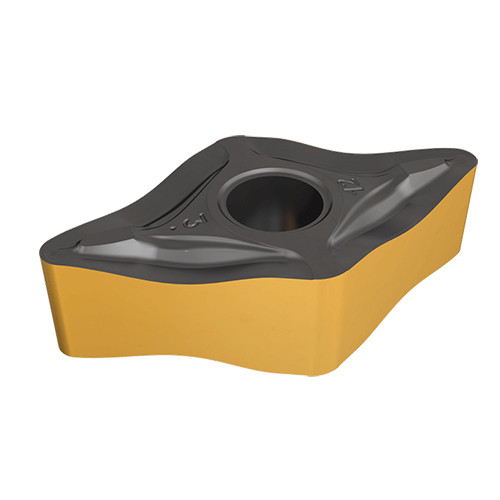

DNMX 150608-M3P IC830
The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces. Used for medium machining applications on steel.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Min D.O.C. | 2 mm |

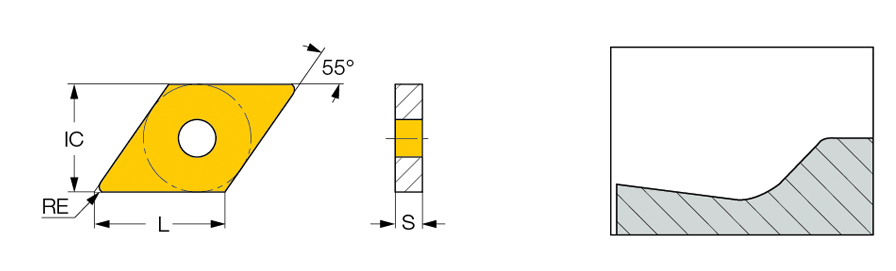

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 7 mm |
| Insert Size | 442-M3 | Min. Turning Feed (ft(min)) | 0.25 mm/rev |
| Cutting Edge Length (L) | 15.5 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Insert Thickness (S) | 6.35 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | HTW |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 | Unit | M |
Product Features
| Family Description | The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces. Used for medium machining applications on steel. | FamilyName | DNMX-M3P |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0168
Name
Turning Indexable Inserts
FamilyName
DNMX-M3P
BrandName
Iscar
