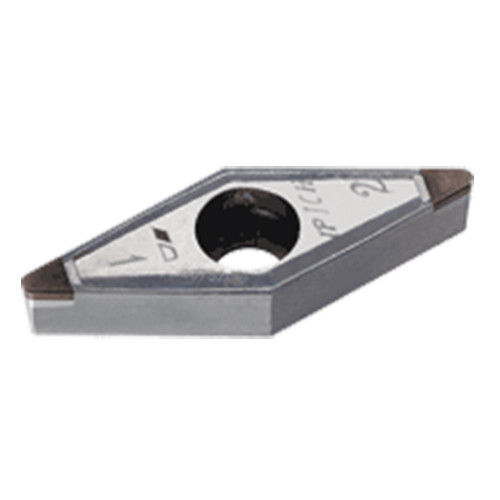

VBGW 160408-F2 IB10HC
35° positive rhombic inserts with 2 CBN tips for machining hardened steel.
| Applicable Material | | Hard Materials | | Tool Type | Turn Positive Inserts |
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 95° Approach | | Min D.O.C. | 0.1 mm |

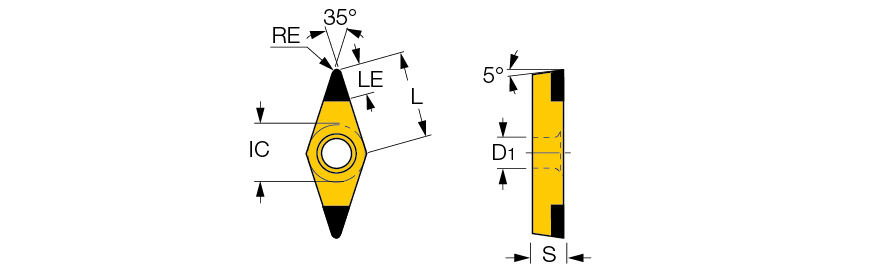

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 0.5 mm |
| Insert Size | 332-F2 | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 16.6 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 5 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | F |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Coating | TiN | Body Material | Carbide |
| Grade | IB10HC | Unit | M |
| Fixing Hole Diameter (D1) | 4.4 mm |
Product Features
| Family Description | 35° positive rhombic inserts with 2 CBN tips for machining hardened steel. | FamilyName | VBGW/VBMW-2 (CBN) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0140
Name
Turning Indexable Inserts
FamilyName
VBGW/VBMW-2 (CBN)
BrandName
Iscar
