CCGW 09T308-F2 IB20HC

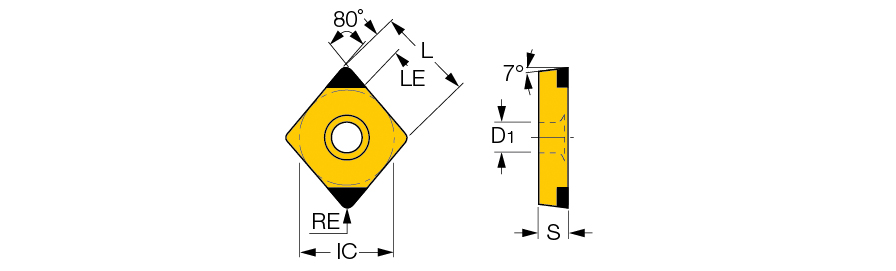

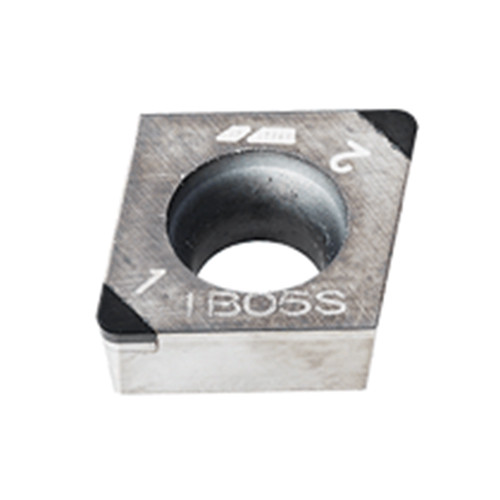

80° positive rhombic inserts with 2 CBN tips for machining hardened steel, sintered metals and high temperature alloys.
| Applicable Material | | Hard Materials | | Tool Type | Turn Positive Inserts |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | ITSBORE System | | Min D.O.C. | 0.05 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 0.5 mm |
| Insert Size | 3-2-F2 | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 9.7 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | F |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Coating | TiN | Body Material | Carbide |
| Grade | IB20HC | Unit | M |
| Fixing Hole Diameter (D1) | 4.4 mm |
Product Features
| Family Description | 80° positive rhombic inserts with 2 CBN tips for machining hardened steel, sintered metals and high temperature alloys. | FamilyName | CCGW/CCMW-2 (CBN) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0100
Name
Turning Indexable Inserts
FamilyName
CCGW/CCMW-2 (CBN)
BrandName
Iscar
