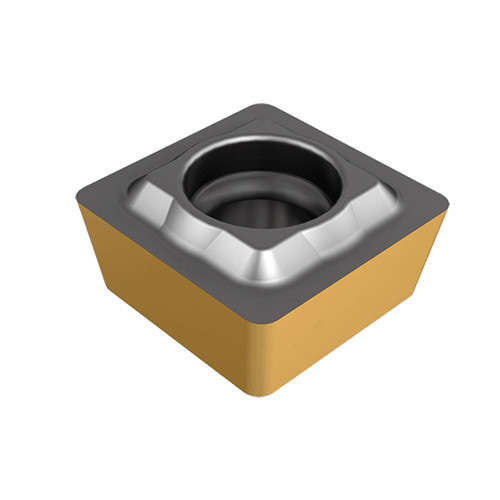

SOMX 060304-HD IC808
DR drill inserts for carbon steel and soft materials.

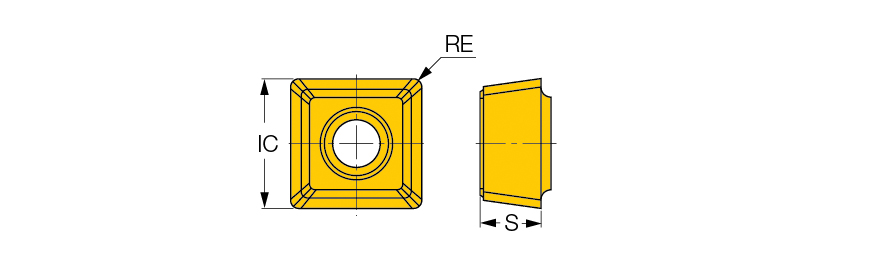

| Insert Thickness (S) | 3.2 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 6.2 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Tool Type | Indexable drilling inserts |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Metric |
| Grade | IC808 | Body Material | Carbide |
| Application | | Drill Mill | Drilling | | Unit | M |
Product Features
| Family Description | DR drill inserts for carbon steel and soft materials. | COO | Israel |
Shipping Info
Weight per item
0.0025
