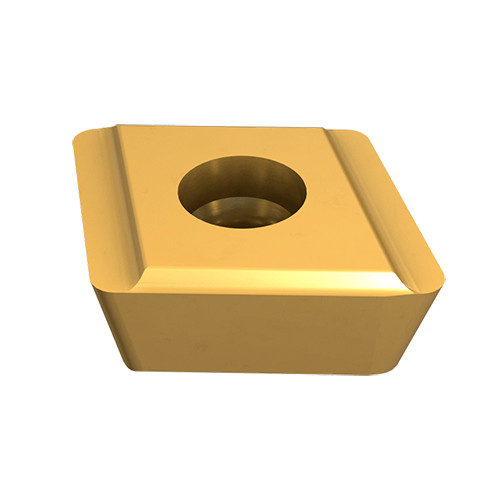

NPHT 110408R-HF-P IC806
Peripheral precision inserts for drilling heads DSD-EF-FB / DDD-EF-FB / DSD-IF-FB.

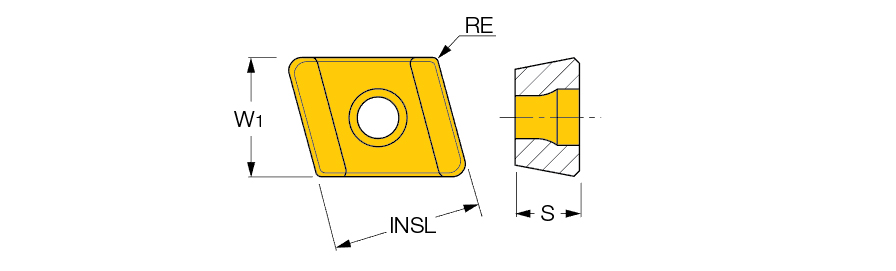

| Cutting Edge Length (L) | 10 mm | Applicable Material | | Super-Alloys / Titanium | |
| Insert Thickness (S) | 4 mm | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 11 mm | Tool Type | Gun Drill Inserts |
| Corner Radius (RE) | 0.8 mm | Measurement Type | Metric |
| Coating | AlTiN "SUMO TEC" | Cutting Direction (HAND) | Right Hand |
| Grade | IC806 | Body Material | Carbide |
| Application | | Deep Drilling | | Unit | M |
Product Features
| Family Description | Peripheral precision inserts for drilling heads DSD-EF-FB / DDD-EF-FB / DSD-IF-FB. | COO | Japan |
Shipping Info
Weight per item
0.0068
