| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Bottom Shouldering | Internal Groove Milling | Shouldering | Side Slotting | | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.05 mm | Minimum Feed per Tooth (fz(min)) | 0.02 mm/tooth |
| Inscribed Circle Diameter (IC) | 15.9 mm | Number of Cutting Edges | 3 |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth | Unit | M |
Product Features

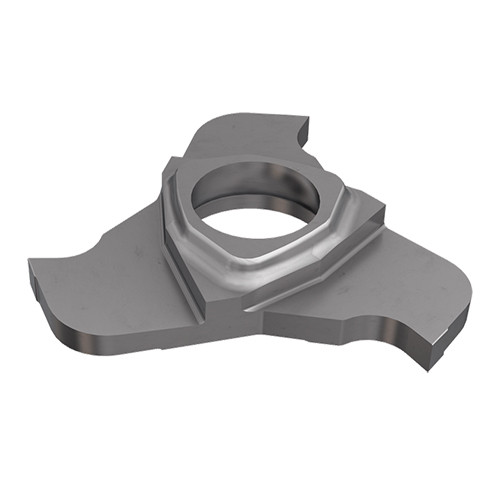

| Family Description | Triple-edged groove milling inserts. | FamilyName | TRI |
| Remarks | Inserts in width range of 6.0 to 6.5 mm can be supplied on request For L dimension, refer to the tool's data | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0027
Name
Milling Indexable Inserts
FamilyName
TRI
BrandName
Iscar
