| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Bottom Shouldering | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Cutting Direction (HAND) | Right Hand |

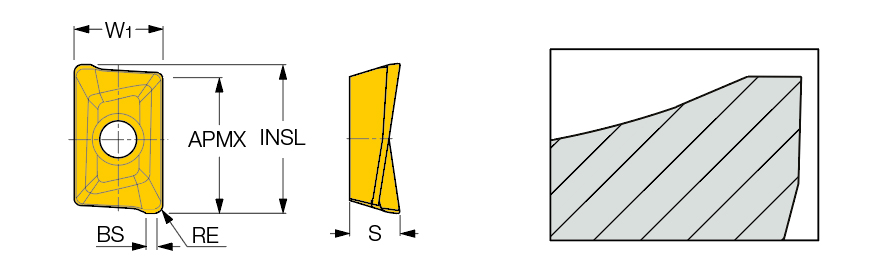

| Insert Length (INSL) | 10.9 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 2 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 9.2 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Width (W1) | 6.7 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3.47 mm | Cutting Edge Effective Length (LE) | 9.75 mm |
| Wiper Edge Length (BS) | 0.8 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC928 | Unit | M |
Product Features
| Family Description | Inserts with reinforced cutting edge (for machining under unfavorable conditions) | FamilyName | APKT 1003.. RM |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0032
Name

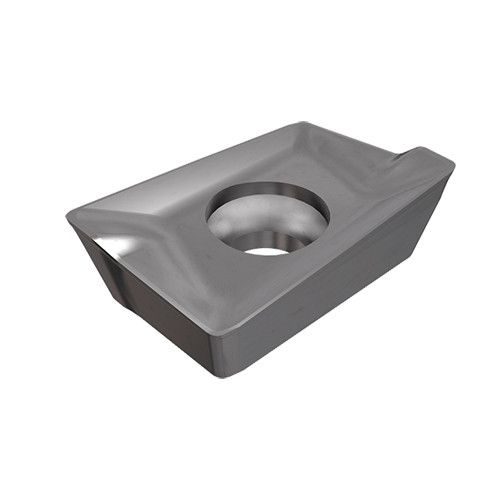

Milling Indexable Inserts
FamilyName
APKT 1003.. RM
BrandName
Iscar
