T490 LNAR 0804PN-R-P IC07

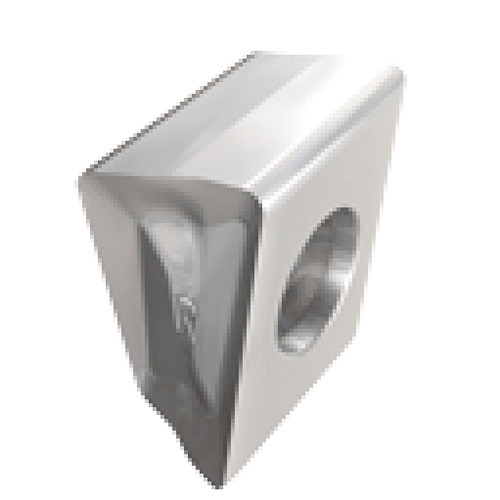

HELITANG - Tangentially clamped, precision ground inserts with 4 helical cutting edges and a super positive rake for machining aluminum.
| Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Facing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Cutting Direction (HAND) | Right Hand |

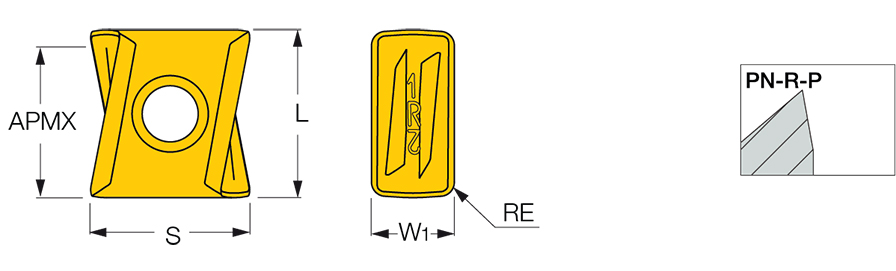

| Insert Length (INSL) | 8.6 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Tool Type | Mill Tangential Inserts |
| Depth of Cut Maximum (APMX) | 8 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Width (W1) | 4.25 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 7.5 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
| Grade | IC07 |
Product Features
| Family Description | HELITANG - Tangentially clamped, precision ground inserts with 4 helical cutting edges and a super positive rake for machining aluminum. | FamilyName | T490 LNAR-P |
| Remarks | For T490 ELN-13 on diameter 25 mm at ap=5, fz=0.15 at ap=10, fz=0.1 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0036
Name
Milling Indexable Inserts
FamilyName
T490 LNAR-P
BrandName
Iscar
