BLR D250-QCS IC330

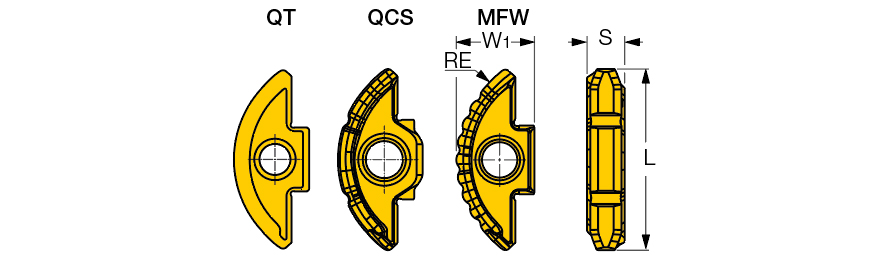

Round segment double-sided inserts for ball nose milling cutters
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Direction (HAND) | Neutral |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0 mm | Tool Type | Double sided Inserts |
| Corner Radius (RE) | 12.5 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Width (W1) | 8.9 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3.8 mm | Measurement Type | Metric |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC330 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
Product Features
| Family Description | Round segment double-sided inserts for ball nose milling cutters | FamilyName | BLR |

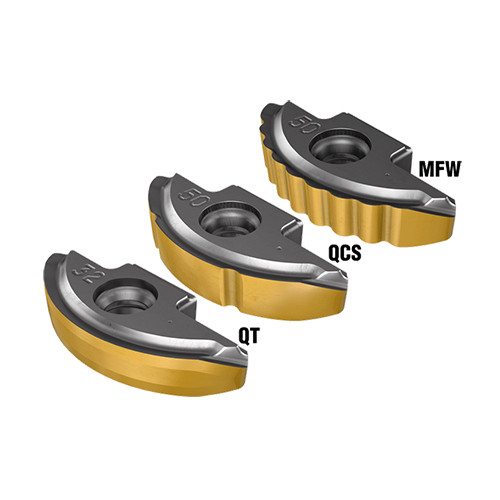

| Remarks | MFW - Serrated cutting edge for roughing operations QCS - Chip splitting cutting edge for semi-finish applications QT - Round edge for finishinging applications | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0036
Name
Milling Indexable Inserts
FamilyName
BLR
BrandName
Iscar
