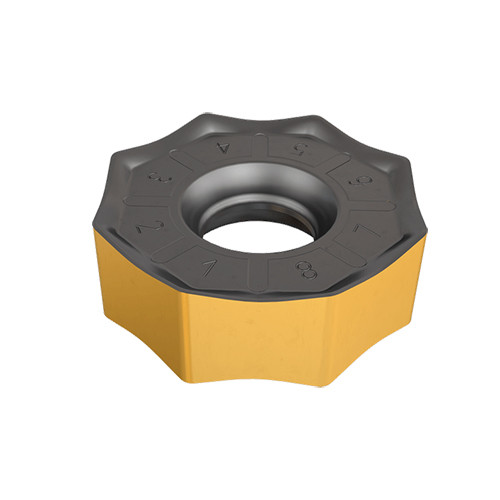

ONMU 100816-N-HL IC810
Double-sided heavy duty octagonal inserts with 16 cutting edges.
| Applicable Material | | Steel | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.4 mm/tooth |
| Application | | Facing | Slanted Shoulder & Chamfer | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1.6 mm | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 7 mm | Minimum Feed per Tooth (fz(min)) | 0.25 mm/tooth |
| Insert Thickness (S) | 9.3 mm | Number of Cutting Edges | 16 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Metric |
| Coating | AlTiCrN+TiN | Body Material | Carbide |
| Grade | IC810 | Unit | M |
Product Features
| Family Description | Double-sided heavy duty octagonal inserts with 16 cutting edges. | FamilyName | ONMU 1008 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0552
Name
Milling Indexable Inserts
FamilyName
ONMU 1008
BrandName
Iscar
