H690 TNKX 160610PNTR IC830
Triangular inserts with 6 helical cutting edges for 90° general use applications.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |
| Application | | Facing | Shouldering | Slotting | | Cutting Edge Material | Carbide |

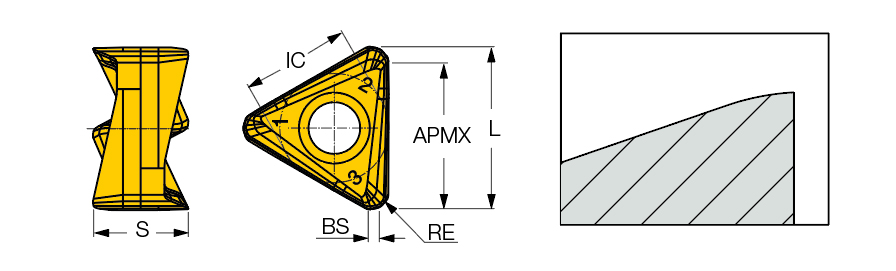

| Insert Length (INSL) | 17.5 mm | Tool Type | Double sided Inserts |
| Corner Radius (RE) | 1 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Depth of Cut Maximum (APMX) | 13.5 mm | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 10 mm | Cutting Edge Effective Length (LE) | 13.5 mm |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Metric |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 | Unit | M |
Product Features
| Family Description | Triangular inserts with 6 helical cutting edges for 90° general use applications. | FamilyName | H690 TNKX 1606 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0154
Name
Milling Indexable Inserts
FamilyName
H690 TNKX 1606
BrandName
Iscar
