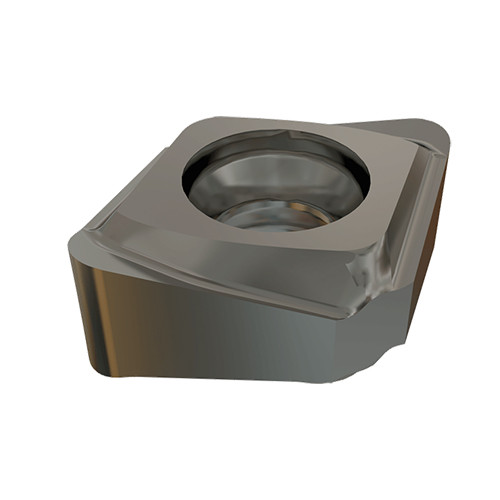

CNMT 070308-MM IC808
Toroidal bull nose peripherally ground inserts with 4 cutting edges. Used for undercutting and for finish profiling on steep and poorly supported surfaces.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Direction (HAND) | Right Hand |
| Application | | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Slotting | Undercutting | | Cutting Edge Material | Carbide |

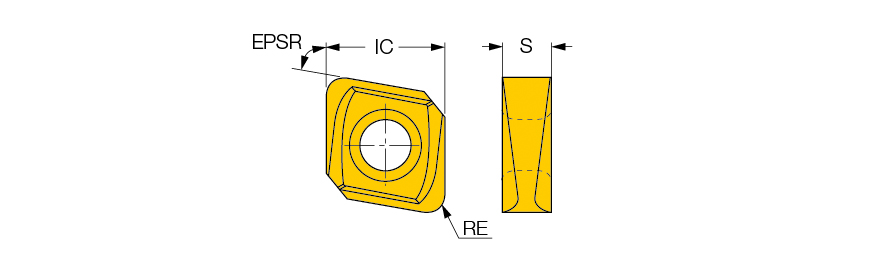

| Corner Radius (RE) | 0.8 mm | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 4 mm | Minimum Feed per Tooth (fz(min)) | 0.12 mm/tooth |
| Insert Included Angle (EPSR) | 80 Degrees | Number of Cutting Edges | 4 |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Metric |
| Grade | IC808 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth | Unit | M |
Product Features
| Family Description | Toroidal bull nose peripherally ground inserts with 4 cutting edges. Used for undercutting and for finish profiling on steep and poorly supported surfaces. | FamilyName | CNHT/MT 07 |
| Remarks | For detailed cutting recommendations, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0028
Name
Milling Indexable Inserts
FamilyName
CNHT/MT 07
BrandName
Iscar
