| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Application | | Facing | Profiling | Rampdown | Shouldering | | Cutting Direction (HAND) | Right Hand |

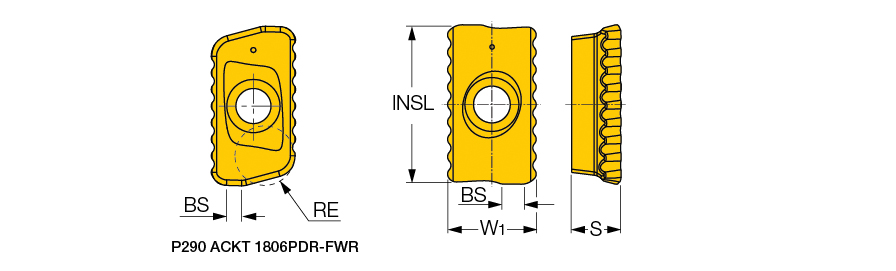

| Insert Length (INSL) | 18.5 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1.2 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 18 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Width (W1) | 10.7 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 6 mm | Cutting Edge Effective Length (LE) | 18 mm |
| Wiper Edge Length (BS) | 2 mm | Measurement Type | Metric |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 | Unit | M |
Product Features
| Family Description | Single-sided rectangular inserts with 2 serrated cutting edges | FamilyName | P290 ACKT |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0132
Name
Milling Indexable Inserts
FamilyName
P290 ACKT
BrandName
Iscar
