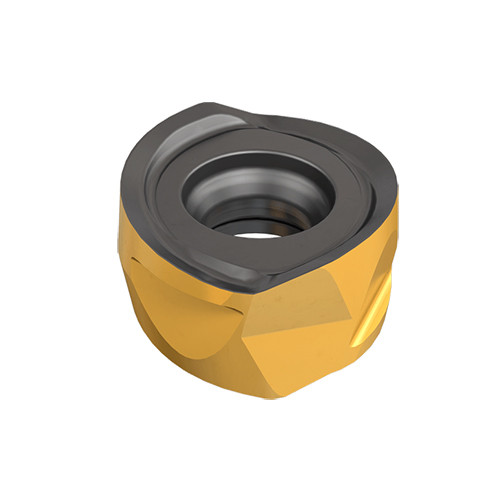

H400 RNHU 1205-ML IC808

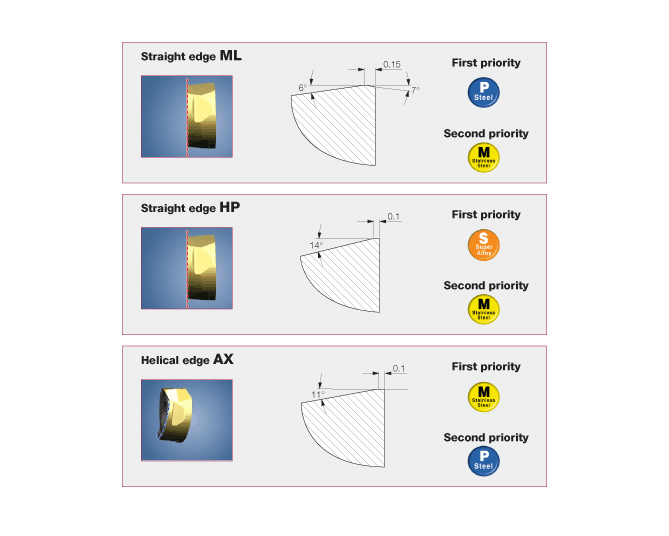

Double-sided inserts with four 5, 6 and 8 mm Radii cutting edges for profile milling applications. Available are three different insert configurations for machining different materials and applications (HELIDO ROUND H400 LINE).
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Cutting Edge Material | Carbide |

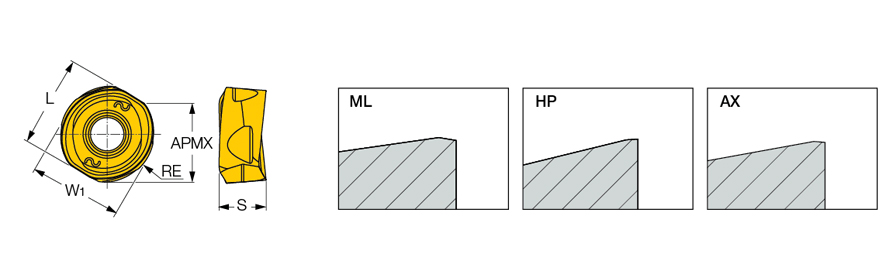

| Insert Length (INSL) | 11 mm | Tool Type | Double sided Inserts |
| Corner Radius (RE) | 6 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Depth of Cut Maximum (APMX) | 8.7 mm | Number of Cutting Edges | 4 |
| Insert Width (W1) | 11.2 mm | Measurement Type | Metric |
| Insert Thickness (S) | 4.75 mm | Body Material | Carbide |
| Coating | TiAlN+AlTiN+TiN | Unit | M |
| Grade | IC808 |
Product Features
| Family Description | Double-sided inserts with four 5, 6 and 8 mm Radii cutting edges for profile milling applications. Available are three different insert configurations for machining different materials and applications (HELIDO ROUND H400 LINE). | FamilyName | H400 RNHU |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0057
Name
Milling Indexable Inserts
FamilyName
H400 RNHU
BrandName
Iscar
