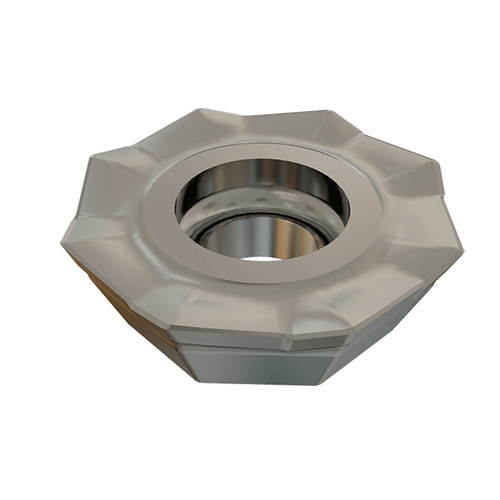

OEMT 060405AER-76 IC830
HELIOCTO, Octagonal milling inserts for general use.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Application | | Facing | Slanted Shoulder & Chamfer | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.5 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 2.5 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Insert Thickness (S) | 4.74 mm | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Metric |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 | Unit | M |
Product Features
| Family Description | HELIOCTO, Octagonal milling inserts for general use. | FamilyName | OEMT/OEKT 060405 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0076
Name
Milling Indexable Inserts
FamilyName
OEMT/OEKT 060405
BrandName
Iscar
