Facing Shouldering Slotting
See all 5 in this Product Family

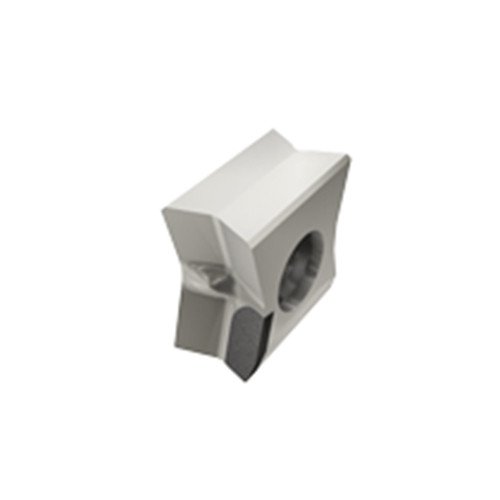

LNAR 110604PN-R-S ID8

TANGMILL tangentially clamped milling inserts with a positive rake brazed PCD tips, used for machining aluminum. ID 5 for aluminum with up to 12% silicon and ID8 for higher silicon contents
TANGMILL
Item # ISC5605202
Brand: Iscar
Mfr#: 5605202
Please enter multiples of 2
Quantity Available
loading...
Applicable Material | Aluminum / Non-Ferrous Materials | Maximum Feed per Tooth (fz(max)) 0.25 mm/tooth
Application | Facing | Shouldering | Slotting | Cutting Direction (HAND) Right Hand

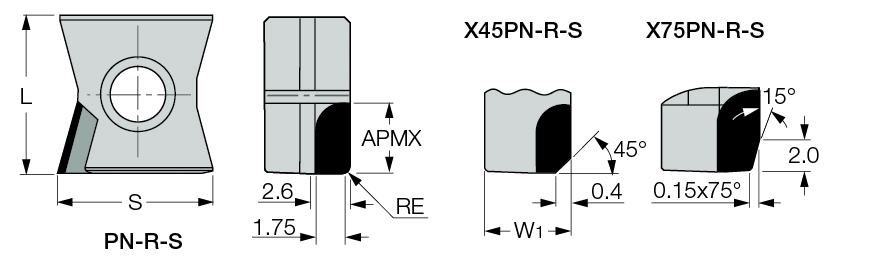

Insert Length (INSL) 11.11 mm Cutting Edge Material PCD
Corner Radius (RE) 0.4 mm Tool Type Mill Tangential Inserts
Depth of Cut Maximum (APMX) 5 mm Minimum Feed per Tooth (fz(min)) 0.1 mm/tooth
Insert Width (W1) 6 mm Number of Cutting Edges 1
Insert Thickness (S) 10.76 mm Measurement Type Metric
Insert Included Angle (EPSR) 90 Degrees Body Material Carbide
Grade ID8 Unit M
LNAR 110604PN-R-S ID8

Product Features

Family Description TANGMILL tangentially clamped milling inserts with a positive rake brazed PCD tips, used for machining aluminum. ID 5 for aluminum with up to 12% silicon and ID8 for higher silicon contents FamilyName LNAR 1106 (PCD)

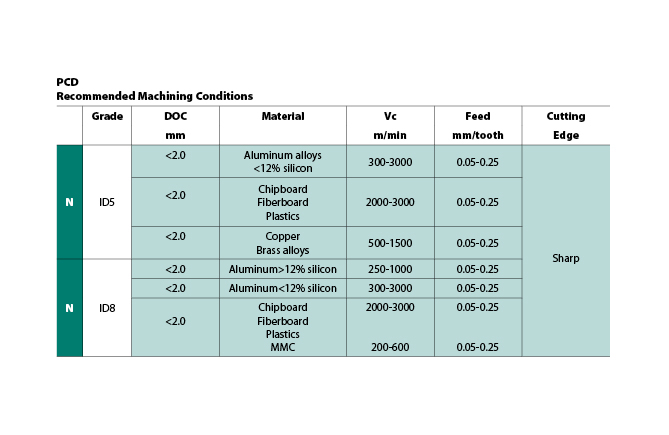

Remarks The chamfered corner is used for reduced chipping on the machined component edges For D.O.C. and cutting speed recommendations click on More Info BrandName Iscar
COO Italy

Shipping Info

Weight per item
0.0140
Name
Milling Indexable Inserts
FamilyName
LNAR 1106 (PCD)
BrandName
Iscar
