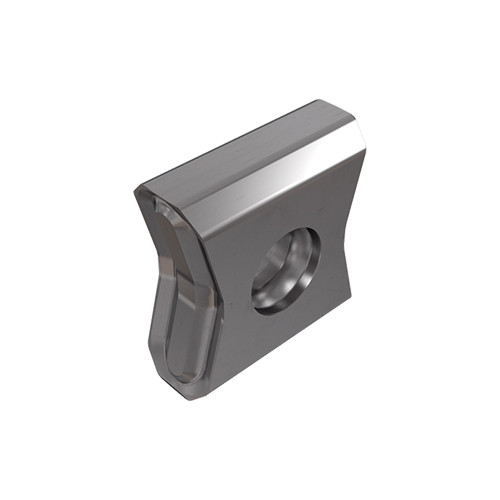

LNKX 1506 1.5X45PN-N IC928
Tangentially clamped chamfered inserts used only on 90° cutters for smooth engagement and elimination of chipping on the material edge during exiting. The 45° chamfer enables machining closer to the clamping fixture.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC928 |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |

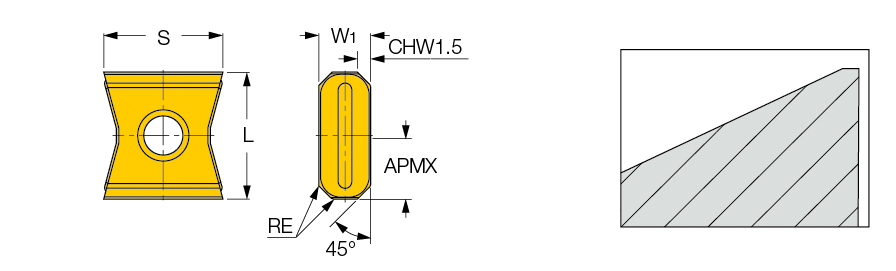

| Insert Length (INSL) | 15 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Mill Tangential Inserts |
| Depth of Cut Maximum (APMX) | 7 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Insert Width (W1) | 6 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 13.88 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
Product Features
| Family Description | Tangentially clamped chamfered inserts used only on 90° cutters for smooth engagement and elimination of chipping on the material edge during exiting. The 45° chamfer enables machining closer to the clamping fixture. | FamilyName | LNKX 1506 1.5X45 PN-N |
| Remarks | A chamfered insert, used only on 90° cutters for smooth engagement Chatter reduction and elimination of chipping on material edge during exit 4 R.H. and 4 L.H. cutting edges when used on F90LN.. cutters | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0136
Name
Milling Indexable Inserts
FamilyName
LNKX 1506 1.5X45 PN-N
BrandName
Iscar
