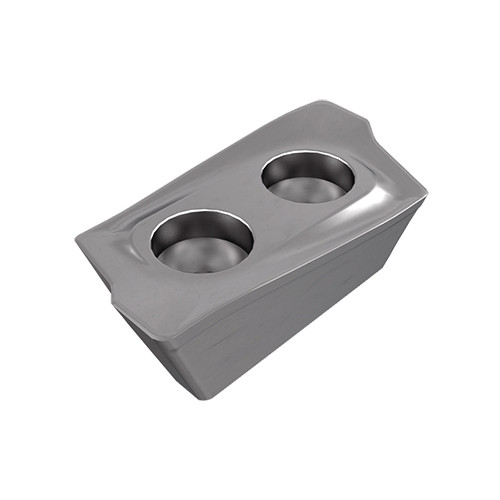

HP ADKT 2207PDTR IC910
HELIPLUS inserts with two 22 mm long cutting edges for general high shoulder milling.

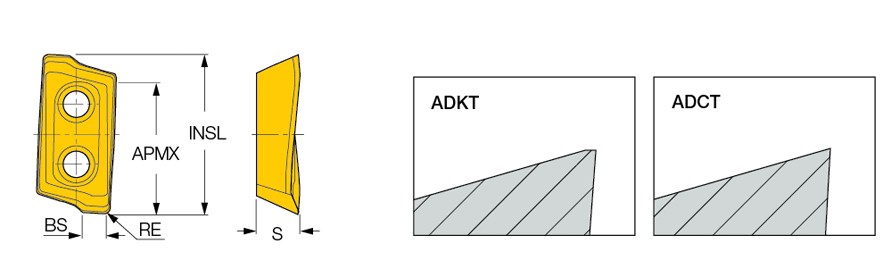

| Applicable Material | | Steel | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 25.73 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 22.6 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 7.5 mm | Measurement Type | Metric |
| Coating | AlTiN | Body Material | Carbide |
| Grade | IC910 | Unit | M |
Product Features
| Family Description | HELIPLUS inserts with two 22 mm long cutting edges for general high shoulder milling. | FamilyName | HP ADKT/ADCT 2207 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0227
Name
Milling Indexable Inserts
FamilyName
HP ADKT/ADCT 2207
BrandName
Iscar
