LNAR 150604PN-R-S ID8

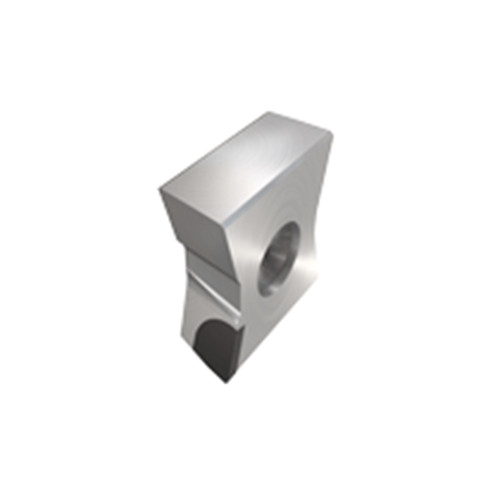

TANGMILL tangentially clamped milling inserts with a positive rake and brazed PCD tips. Used for machining aluminum. Grade ID5 for aluminum with up to 12% silicon and ID8 for higher silicon contents.
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Application | | Facing | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |

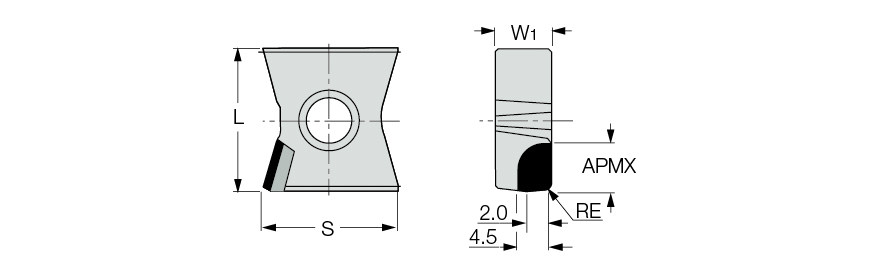

| Insert Length (INSL) | 15.06 mm | Cutting Edge Material | PCD |
| Corner Radius (RE) | 0.4 mm | Tool Type | Mill Tangential Inserts |
| Depth of Cut Maximum (APMX) | 5 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Width (W1) | 6 mm | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 14 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Grade | ID8 | Unit | M |
Product Features
| Family Description | TANGMILL tangentially clamped milling inserts with a positive rake and brazed PCD tips. Used for machining aluminum. Grade ID5 for aluminum with up to 12% silicon and ID8 for higher silicon contents. | FamilyName | LNAR 1506 PN-R-S (PCD) |

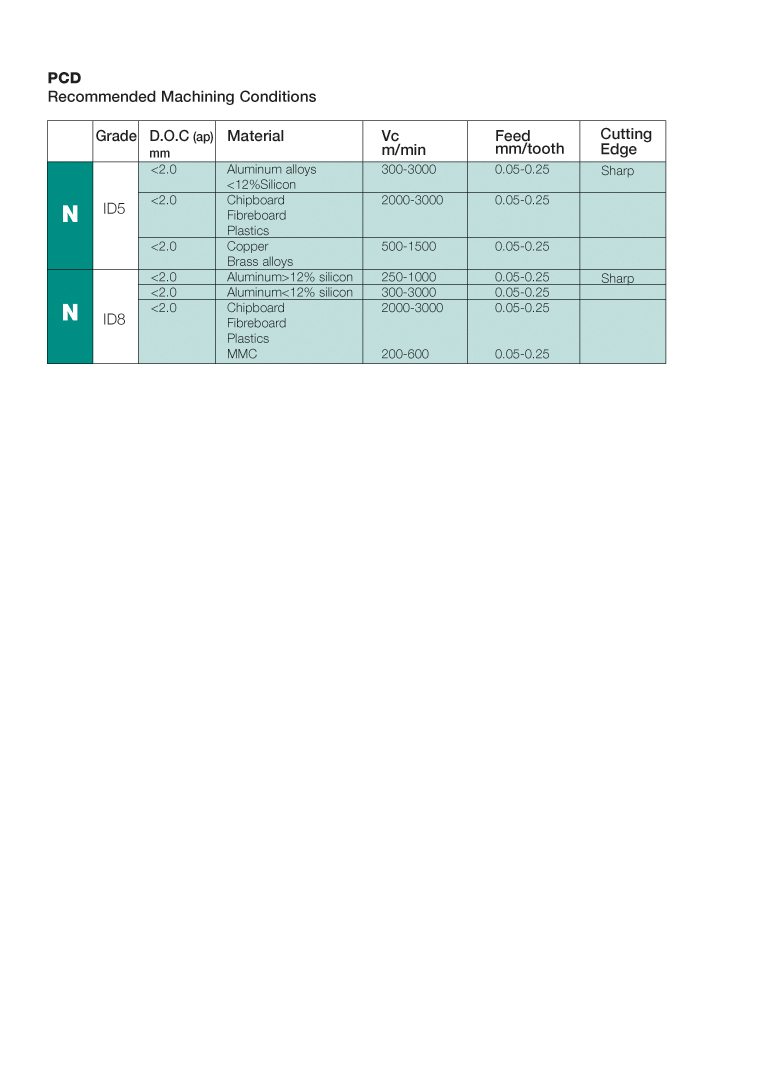

| Remarks | For DOC and cutting speed recommendations click on More Info. | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
0.0205
Name
Milling Indexable Inserts
FamilyName
LNAR 1506 PN-R-S (PCD)
BrandName
Iscar
